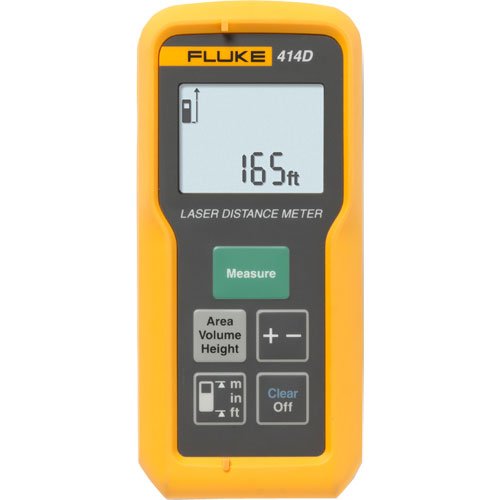

Fluke 414D 50m Range Laser Distance Meter

The Fluke 414D laser distance meters use the most advanced distance measuring technology. The Fluke 414D Laser Distance meter is fast, accurate, durable, and easy to use—just point and shoot. The Fluke 414D's simple design and easy one-button operation means you spend less time measuring while increasing the reliability of the answers that you need.

The compact and handy, the Fluke 414/D laser distance meters were designed for indoor and limited outdoor applications. Simple to operate, the Fluke 414-D offers the Fluke durability and quality you expect. And, with specific function buttons, different tasks can be completed quickly and easily.

The extra bright laser is clearly visible so you can always see your targeting point even if the target object is in a hard-to-reach spot, or a long distance away. The Fluke 414 D laser distance meters have a large LCD screen and buttons positioned for one-handed measurements.


Specifications
Distance measurement
Typical measuring tolerance ± 2.0 mm
Maximum measuring tolerance ± 3.0 mm
Range at Leica target plate GZM26 50 m/165 ft
Typical range 40 m/130 ft
Range at unfavorable condition 35 m/115 ft
Smallest unit displayed 1 mm /1/16 inches
laser point at distances 6/30/60 mm (10/50/100 m)
0.23/1.18/2.36 in (32.8/164/330)
General Specifications
Laser class II
Laser type 635 nm, <1 mW
Protection class IP40
Automatic laser off After 90 seconds
Automatic power off After 180 seconds
Battery life (2 x AAA)
1.5 V NEDA 24A/IEC LR03
up to 3,000 measurements
Size (HxWxD) 4.56 in x 2.08 in x 1.29 in
(116 mm x 53 mm x 33 mm)
Weight (with batteries) 113 g (3.98 oz)
Temperature range:
(Storage & Operation)
-25°C to +70°C (-13°F to +158°F)
0°C to +40°C (32°F to +104°F)
Maximum altitude 3000 m
Maximum relative humidity 85% at 20°F to 120°F (-7°C to 50°C)
Safety CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1 (2nd Edition), ISA-82.02.01, IEC Standard No. 61010-1:2001, EN60825-1:2007 (Class II)
EMC 61326-1:2006
