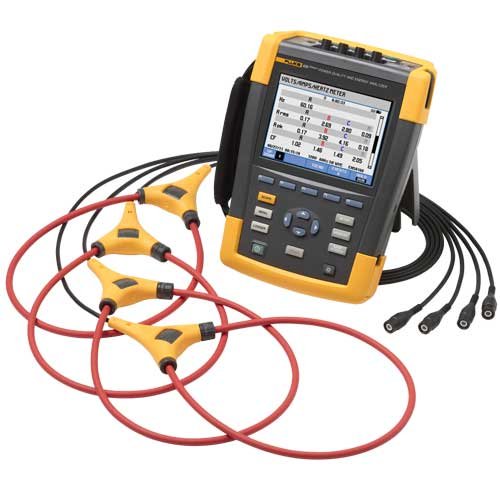

Fluke 435-II Series II Three-Phase Power Quality and Energy Analyzer

Category: Power Analyzers

The new Fluke 430 Series II Three-Phase Power Quality and Energy Analyzers offer the best in power quality analysis and introduce, for the first time ever, the ability to monetarily quantify energy losses

The Fluke 435-II helps locate, predict, prevent, and troubleshoot power quality problems in three-phase and single-phase power distribution systems. Additionally, the Fluke-patented energy loss algorithm, Unified Power Measurement, measures and quantifies energy losses due to harmonics and unbalance issues, allowing the user to pinpoint the origin of energy waste within a system

Energy loss calculator: Classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint true system energy losses in dollars.

Power inverter efficiency: Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamps.

PowerWave data capture: Capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.).

Waveform capture: Capture 100/120 cycles (50/60Hz) of each event that is detected in all modes, without set-up.

Automatic Transient Mode: Capture 200 kHz waveform data on all phases simultaneously up to 6 kV

Fully Class-A compliant: Conduct tests according to the stringent international IEC 61000-4-30 Class-A standard.

Mains signaling: Measure interference from ripple control signals at specific frequencies.

Troubleshoot real-time: Analyze the trends using the cursors and zoom tools.

Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance.

Measure all three phases and neutral: With included four flexible current probes with enhanced thin flex designed to fit into the tightest places.

Automatic Trending: Every measurement is always automatically recorded, without any set-up.

System-Monitor: Ten power quality parameters on one screen according to EN50160 power quality standard.

Logger function: Configure for any test condition with memory for up to 600 parameters at user defined intervals.

View graphs and generate reports: With included analysis software.

Fluke 435-II Measurement Modes
Scope 4 voltage waveforms, 4 current waveforms, Vrms, Vfund. Arms, A fund, V @ cursor, A @ cursor, phase angles
Volts/amps/hertz Vrms phase to phase, Vrms phase to neutral, Vpeak, V Crest Factor, Arms Apeak, A Crest Factor, Hz
Dips and swells Apeak, A Crest Factor, Hz Dips and swells
Harmonics dc, 1 to 50, up to 9th harmonic for 400 Hz Harmonics Volts, THD, Harmonic Amps, K factor Amps, Harmonic Watts, THd Watts, K factor Watts, Interharmonic Volts, Interharmonic Amps, Vrms, Arms (relative to fundamental or to total rms)
Power and energy Vrms, Arms, Wfull, Wfund., VAfull, VAfund., VAharmonics, VAunbalance, var, PF, DPF, CosQ, Efficiency factor, Wforward, Wreverse
Energy loss calculator Wfund, VAharmonics, VAunbalance, var, A, Loss Active, Loss Reactive, Loss Harmonics, Loss Unbalance, Loss Neutral, Loss Cost (based upon user defined cost / kWh)
Inverter efficiency(requires optional dc current clamp) Wfull, Wfund, Wdc, Efficiency, Vdc, Adc, Vrms, Arms, Hz
Unbalance Vneg%, Vzero%, Aneg%, Azero%, Vfund, Afund, V phase angles, A phase angles
Inrush Inrush current, Inrush duration, Arms½, Vrms½
Monitor Vrms, Arms, harmonic Volts, THD Volts, PLT, Vrms½, Arms½, Hz, dips, swells, interruptions, rapid voltage changes, unbalance and mains signalling. All parameters are measured simultaneously in accordance with EN50160. Flagging is applied according to IEC61000-4-30 to indicate unreliable readings due to dips or swells
Flicker Pst(1min), Pst, Plt, Pinst, Vrms ½, Arms ½, Hz
Transients Transient waveforms 4x Voltage 4x Amps, triggers: Vrms ½, Arms ½, Pinst
Mains Signaling Relative signaling voltage and absolute signaling voltage averaged over three seconds for up to two selectable signaling frequencies
Power Wave Vrms½, Arms½ W, Hz and scope waveforms for voltage amps and watts
Logger Custom selection of up to 150 PQ parameters measured simultaneously on 4 phases
