Fluke Norma High Precision Power Analyzers

Category: Power Analyzers

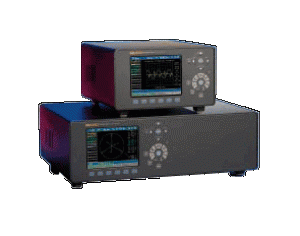

The Fluke Norma Series Power Analyzers are a compact, high performance family of Power Analyzers. Each unit provides the latest measurement technology, assisting engineers with the development and testing of motors, inverters, lighting, power supplies, transformers and automotive components.

The Norma Series are based on a patented, high-bandwidth architecture; The instruments deliver high-precision measurements of single or three-phase current and voltage, harmonics analysis, Fast Fourier Transformation (FFT) analysis, as well as calculations of power and other derived values. The Series consists of the Fluke Norma 4000 Three-Phase Power Analyzer and the Fluke Norma 5000 Six-Phase Power Analyzer. These rugged, high-precision analyzers provide unmatched price performance for easy and reliable use in the field, or as a bench unit in laboratories and on test benches.

Fluke Norma 4000 and Fluke Norma 5000 power analyzers accurately measure current and voltage and calculate active, reactive and apparent power and calculate other derived values from these high-precision measurements. Accuracy is not affected by either the waveform shape or frequency over a wide range. Phase shift accuracy is maintained due to the input channel design. Harmonics are calculated up to half of the sampling rate. The DSO function represents measured input parameters as waveforms. Voltage and current can be measured directly via the instrument’s integrated voltage dividers and shunts. It is also possible to connect external voltage dividers as well as shunts or current probes for specific applications. Options such as additional interfaces, analogue inputs and outputs are also available. The analyzer firmware can be updated via the standard RS232 interface.

Fluke Norma Series power analyzers are designed to measure signals in a wide frequency range from DC to MHz. The input stages are dc coupled and designed to handle high rise time signals. A zero and offset calibration against a stable voltage reference runs automatically over short time periods to stabilize the accuracy. All voltage and current channels are separated by a unique technology of barriers for high channel isolation and common mode rejection. This makes Fluke Norma Series power analyzers suitable for special applications, such as the switching waveforms present on variable frequency drives or high efficiency lighting loads.


Electric motors and inverter drive systems Through detailed spectrum analysis and dynamic torque calculation capabilities, switching losses caused by the inverter are accurately measured, and a thorough evaluation is made of torque transients and harmonics at higher frequencies.
Inverter drive system Simultaneous measurement of all electrical and mechanical power parameters in the same time window enables users to observe the influence one component has on another, or on the whole system.
Lighting systems A wide bandwidth of up to 10 MHz and a high sampling rate up to 1 MHz provide detailed signal analysis at ballast outputs. A unique shunt technique enables power measurements at very high frequencies. Simultaneous measurement of input and output power provides instant calculation of ballast losses.
Transformers Synchronous six-phase power measurements enable highly accurate efficiency and loss calculations of large power transformers even at very low power factors. Synchronous multiphase resistance measurements of transformer coils are also possible.
Automotive Synchronous electrical input and mechanical output measurements provide complete data on the efficiency and losses of individual components as well as the whole drive system.


The exceptionally high processing power enables precise measurements without gapping, ensuring good results even with rapidly changing signals. Fluke Norma Series power analyzers also maintain high performance and reliable accuracy within the industry’s longest recommended recalibration interval of two years. This long interval reduces downtime and saves service costs.

There are four different measuring channels available for each Fluke Norma Series power analyzer. For the highest level of flexibility and simplicity, you can choose from a variety of standard configurations. This enables users to select the power analyzer best suited to their application’s power measurement requirements.

Each power phase module differs in basic accuracy, current measuring range, sampling frequency, and bandwidth. The input modules can handle up to 10 A or 20 A directly or measure current via wideband precision shunts. The available range of shunts enables measurements up to 1500 A and can be used in conjunction with all of the available input modules.



  Norma 4000 Norma 5000
Number of Phases 1 or 3 3, 4, or 6
Bandwidth DC to 3 MHz or dc to 10 MHz depending on input module
Basic Accuracy 0.2%, 0.1% or 0.03% depending on input modules
Sampling Rate 0.33 MHz or 1 MHz depending on input modules
Voltage Input Range 0.3 to 1000 V
Current Input Range
(direct, not via shunt)
0.03 mA – 20 A depending on input module
Display Color, 5.7" / 144 mm - 320 x 240 pixel
Fast Fourier Transformation
(FFT)
To the 40th harmonic
RS232 Interface Standard
PI1 Process Interface
(8 analog / impulse
inputs & 4 analog outputs)
Optional
IEEE 488/GPIB Interface Optional
Fluke NormaView PC Software
(for data download,
analysis & report writing)
Standard
Basic Function
Included functions
  • Fast Fourier Transformation (FFT)
  • Digital Oscilloscope (DSO)
  • Integration function (energy)
  • Vector Display
  • Recorder
  • RAM data memory
  • Configuration
More information on the Basic Function of the Norma Series >>

Working Temperature Range

Non-gapping calculation of averaged values for each phase. In three phase system additionally calculation of total power and averaging of V and I of the three phases. The fundamental H01 will be calculated in synchronous mode also for these values.

Urms effective value, Urm rectified mean, Um mean value
Up-, Up+, Upp peak values
Ucf crest factor Ucf, Uff form factor
Ufc fundamental content
Uthd distortion factor DIN, IEC
Irms effective value, Irm rectified mean, Im mean value
Ip-, Ip+, Ipp peak values
Icf crest factor Icf, Iff form factor
Ifc fundamental content
Ithd distortion factor DIN, IEC
P active power [W]
Q reactive power [Var]
S apparent power [VA]
ë, cos. phase angular
Integral function for active power P, reactive power Q, apparent power S, voltage (Um) and current (Im)
Number of digits 4 or 5 dependent on measured value.
Frequency and Synchronization
Range DC and 0.2 Hz to sample rate
Accuracy ±0.01 % of measured value (reading)
General Specifications
  • Channels which can be selected: all U/I or external input.
  • One of three low pass filter with different frequencies can be switched into the signal.
  • The frequency is always visible on the top of the screen.
  • The BNC synchronization socket on backside of the instrument can be used either as input or output.
  • The input signals can be measured up to the sample rate of the power phase. The maximum level must not be higher then 50V.
  • The output signal is a pulsed 5Volts TTL signal (frequency depends on the measured synch frequency).
Power Phase Channels
Range PP42 PP50 PP54 PP64
Accuracy 0.2% (0.1% rd + 0.1% rg) 0.1% (0.05% rd + 0.05% rg) 0.1% (0.05% rd + 0.05% rg) 0.03% (0.02% rg + 0.01% rg)
Current range 20A 10A 10A 10A
Sampling rate 341 kHz 1 MHz 341 kHz 341 kHz
Bandwidth 3 MHz 10 MHz 3 MHz 3 MHz
More info More on PP42>> More on PP50>> More on PP54>> More on PP64>>
Configuration Memory
Memory for Configurations 4 MB
Up to 15 user configurations can be saved into a permanent memory and reloaded later on. Changes that were not saved are lost after switching off the instrument.
Memory for Settings Standard
Ambient Conditions
Working Temperature Range 5°C to 35°C (41°F to 95°F)
Storage Temperature Range -20°C to 50°C (-4°F to 122°F)
Housing Material Fluke Norma Power Analyzers are extremely compact and equipped with a solid metal case to meet stringent EMC requirements.
Climatic Class KYG DIN 40040, max. 85 % relative humidity, non-condensing.
Power supply 85 V ac to 264 V ac, 50 Hz to 60 Hz, dc 100 to 260 V, ca. 40 VA European plug with switch. Binding post for current available on some models.
Measuring Inputs Safety sockets 4 mm, 2 for each input. External shunt connection over BNC socket.
Operation Membrane keyboard with cursor – function keys and direct functions.
Connections Rear panel of the 3-phase Analyzer
Standards and Safety
Electrical Safety EN 61010-1 / 2nd Edition 1000 V CAT II (600V CAT III)
Degree of pollution 2, safety Class I
EN 61558 for transformer
EN 61010-2-031/032 for accessories
Maximum inputs For voltage inputs Measurement range 1000 Veff, 2 kVpeak
For current inputs Measurement range 10 Aeff, 20 Apeak
Test voltage
Net input case
(protective conductor)
1.5 KV AC
Net connection Measurement input 5.4 kV AC
Measurement inputs Case 3.3 kV AC
Measurement input input 5.4 kV
Electromagnetic susceptibility
Emission IEC 61326-1, EN 50081-1, EN 55011 Class B
Immunity IEC 61326-1 / Annex A (industrial sector), EN 50082-1
Physical Dimensions
Size
Norma 4000 5.9 in x 9.3 in x 12.4 in (150 mm x 237 mm x 315 mm)
Norma 5000 5.9 in x 17.6 in x 12.4 in (150 mm x 447 mm x 315 mm)
Weight
Norma 4000 Approx. 11 lb. (5 kg)
Norma 5000 Approx. 15 lb. (7 kg)

Location
