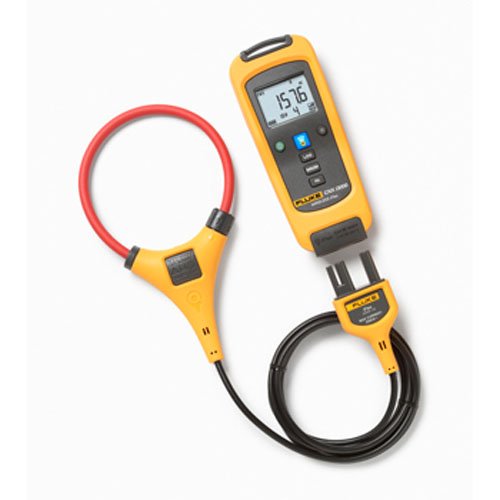

The Fluke FLK-CNX i3000 AC Wireless Current Module is a True-RMS current meter that wirelessly relays measurements to the CNX 3000 Wireless Multimeter. The Fluke i3000 iFlex Wireless Current Module allows you to measure around awkward sized conductors and makes wire access easier.
Specifications | |
Accuracy | 3 % ± 5 digits |
Resolution | 0.1 A |
Range | 0.5 A to 2500 A AC |
Battery type | 2 AA, NEDA 15 A, IEC LR6 |
Battery Life | 400 hours |
Memory Record | up to 65,000 readings |
RF communications | 2.4 GHZ ISM Band |
RF communication range | 20 meters |
Operating temperature | -10 °C to +50 °C |
Storage temperature | -40 °C to +60 °C |
Temperature coefficient | Add 0.1 X (specified accuracy)/ °C (<18 °C or >28 °C) |
Operating humidity | 90 % at 35 °C, 75 % at 40 °C, 45 % at 50 °C |
Safety compliance | EN/IEC 61010-1:2010 to 1000 V Measurement Category (CAT) III 600 V Measurement Category (CAT) IV EN/IEC 61010-2-030:2010 EN/IEC 610101-2-031:2002 EN/IEC 61010-2-032:2002 |
Safety rating | CAT IV 600 V, CAT III 1000 V |
Certifications | CSA, FCC T68-FWCS IC:6627A-FWCS |
Ingress Protection (IP) rating | IP42 |
Jaw opening | 25.4 cm (10 in) coil |
Size (HxWxD) | 6.5 in x 2.5 in x 1.4 in |
