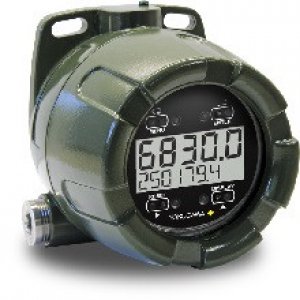

The new YPP6830 is a rugged, explosion-proof loop-powered rate/totalizer designed for demanding flow applications. It brings modern design, easy readability, and enhanced functionality to hazardous areas around the world in a way never seen before. Other meter designs have lost sight of the fact that the primary thing operators want to do with meters such as these is to look at them. They want a meter with a display that provides the important information about their process, can be seen under various lighting conditions, from wide angles, and from a distance. The YPP6830 delivers all these and more. The rugged, explosion-proof enclosure and extensive agency approvals allow it to be installed virtually anywhere.
Model | Description |
---|---|
YPP6830-BTA-0 | Battery puwered (or DC with battery backup*) with isolated 4-20mA output, Backlight, 2 Pulse Outputs |
YPP6830-CTB-0 | Output Loop Powered with Isolated 4-20mA Output, Backlight |
YPP6830-DTB-0 | Output loop with battery backp*(or battery powered)with loop output, Backlight, Non-isolated 4-20mA Output |
YPP6830-AP0-M | DC Powered, Backlight, 2 Pulse Output, 2 wire RS-485 connection with Modbus Protocol |
YPP6830-APA-M | DC Powered with isolated 4-20mA output, 2 wire RS-485 connection with Modbus Protocol |
YPP6830-BM0-M | Battery Powered (or DC with battery backup, Backlight, 2 Pulse Outputs, 2 wire RS-485 connection with Modbus Protocol |
YPP6830-BMA-0 | Battery Powered (or with battery backup*) with isolated loop output, Backlight, 2 Pulse Outputs |
YPP6830-BTA-M | Battery powered (or DC with battery backup) with loop powered backlight, Isolated 4-20mA output, 2 wire RS-485 connection with Modbus protocol |
YPP6830-BM0-0 | DC Powered (or DC with battery backup*), Backlight, 2 Pulse Outputs |
YPP6830-APA-0 | DC Powered, Backlight, 2 Pulse Outputs, Isolated 4-20mA Output |
YPP6830-AP0-I | DC Powered, Backlight, 2 Pulse Output, Isolated signal 2 wire RS-485 connection with Modbus Protocol |
YPP6830-APA-I | DC Powered, Backlight, 2 Pulse Output, Isolated 4-20mA output, Isolated signal 2 wire RS-485 connection with Modbus Protocol |
YPP6830-BM0-I | Battery Powered (or DC with battery backup) Isolated signal 2 wire RS-485 with Modbus protocol |
YPP6830-BMA-I | Battery powered (or DC with battery backup), Backlight, Isolated 4-20mA output, Isolated signal 2 wire RS-485 with Modbus protocol |
YPP6830-BTA-I | Battery powered (or DC with battery backup) with output loop powered backlight, 2 Pulse outputs, Isolated 4-20mA output, Isolated signal 2 wire RS-485 with Modbus protocol |
YPP6830-AP0-0 | DC Powered, Backlight, 2 Pulse Outputs |
YPP6830-BMA-M | Battery powered (or DC with battery backup) with isolated 4-20mA output, Backlight, 2 wire RS-485 connection with Modbus protocol |
