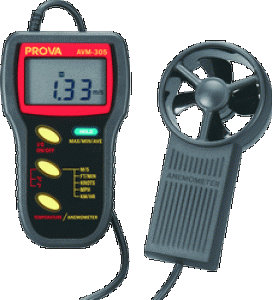

PRO0033-305 Handheld CFM,CMM meter

Category: Airflow meters
  • 1.8 meters coiled cable and mounting nut for long extension
  • Low power consumption
  • Hold/Max/Min/Ave functions
  • Build-in low battery indicator
  • Smart Auto-Power-Off (10 minutes)
  • RS-232C Interface with PC
  • Optional Thermal Printer 300XP
  • Air temperature measurement

http://tes.com.tw/image/featuree.gif

http://tes.com.tw/pro-images/avm301.gif

  • Sensitive and Accurate
  • Ergonomic and easy-to-use design
  • Large 4 digits LCD (Liquid Crystal Display)
  • 1.8 meters coiled cable and mounting nut for long extension
  • Low power consumption
  • Hold/Max/Min/Ave functions
  • Build-in low battery indicator
  • Smart Auto-Power-Off (10 minutes)
  • RS-232C Interface with PC
  • Optional Thermal Printer 300XP
  • Air temperature measurement

http://tes.com.tw/image/spee.gif



Electrical Specifications: (23℃±5℃)
Range of Wind Velocity:


Units

Range

Resolution

Threshold

Accuracy

m/s

0.0 - 45.0

0.01

0.3

±3% ± 0.2

ft/min

0 - 8800

0.01/0.1/1

60

±3% ± 40

knots

0.0 - 88.0

0.01/0.1

0.6

±3% ± 0.4

Km/hr

0.0 - 160.0

0.01/0.1

1.0

±3% ± 0.8

mph

0.0 - 100.0

0.01/0.1

0.7

±3% ± 0.4

m/s: meter per second

ft/min: feet per minute

knots: nautical miles per hour

Km/hr: kilometers per hour

mph: miles per hour





Unit Conversion table:



m/s

ft/min

knots

Km/hr

mph

1 m/s

1

196.87

1.944

3.60

2.24

1 ft/min

0.00508

1

0.00987

0.01829

0.01138

1 knot

0.5144

101.27

1

1.8519

1.1523

1 Km/hr

0.2778

54.69

0.54

1

0.6222

1 mph

0.4464

87.89

0.8679

1.6071

1



Range of Wind Temperature:


Unit

Range

Resolution

Accuracy

-5.0 - 0.0

0.1

± 1.2 ℃



0.0 - 40.0

0.01

± 1.0 ℃



40.0 – 50.0

0.01

± 1.3 ℃



50.0 – 60.0

0.01

± 1.5 ℃

23.0 ~ 32.0

0.2

± 2.2 ℉



32.00 ~ 104.00

0.02

± 1.8 ℉



104.00 ~ 122.00

0.02

± 2.4 ℉



122.00 ~ 140.00

0.02

± 2.7 ℉

℉ = (9/5) x ℃ + 32; ℃ = (5/9) x (℉ -32)



General Specifications:


Mounting Nut:

1/4" x 20

Operating Temperature:

Meter: 0℃ ~ 50℃ (32 ℉ ~ 122℉)
Vane: 0℃ ~ 60℃ (32 ℉ ~ 140℉)

Operating Humidity:

Less than 80% RH

Operating Pressure:

500Mb-2bar

Storage Temperature:

-40℃ ~ 60℃
(-40℉ ~ 140℉)

Power Consumption:

Approx. 6mA

Battery Type:

1.5V AA batteries x 2

Battery Life:

200 hours (for 2000mA-hrs battery)

Dimension: Meter

78 x 130 x 40mm

Dimension: Vane

66 x 132 x 29.2mm

Weight:

250g (battery included)

Accessories:

Carrying case x 1、Users manual x 1、1.5V Battery x 2
RS-232C to USB bridge
Software CD
Software Users Manual

Option:

Prova 300XP、Portable Thermal Printer
