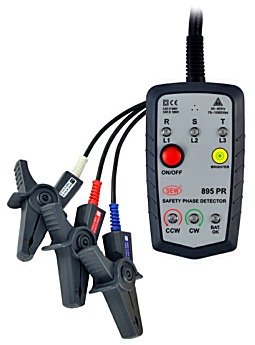

SEW0031-895PR NON CONTACT PHASE ROTATION METER

Category: Phase sequence indicators
FEATURES
● Non-contact detector clips. No metal contact points to advocate
   greater safety.
● Dual functions : open phase and phase sequence detection.
● Designed for checking a wider range of 3-phase power sources.
● LED display lights with buzzer indicator.
● Brightness button feature for better visibility in dimly lit areas or
   sunlight.
● Magnetic mounting feature.

  SPECIFICATIONS
Measurement principle : Static induction
Input voltage : 75-1000 Vac
Frequency range : 45-65 Hz
Auto-off : 5 min. after power on
    without detection
Low battery warning : Power LED flashes at
    7V ± 0.2 or less
Operating temperature
& humidity : 0°C ~ 40°C Max. 80% R.H.
Storage temperature
& humidity : -10°C ~ 50°C Max. 80% R.H.
Cable length : Approx. 800mm
Dimensions : 128(L) × 72(W) × 44(D) mm
Weight
(battery included) : Approx. 380g
Power source : 9V(6LF22) × 1
Safety standard : EN 61010-1 CAT III 1000V /
    CAT IV 600V
    EN 61326-1 EN 61557-1
    EN 61557-7
