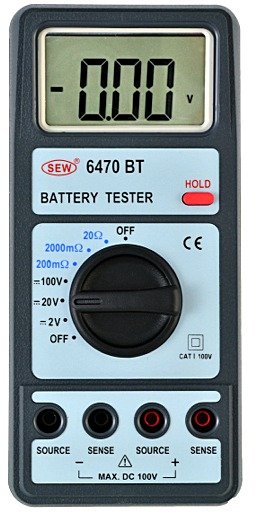

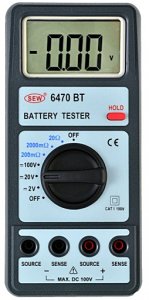

SEW0030-6470BT DIGITAL BATTERY TESTER

Category: Battery testers

● 2000 counts.
● DC Voltage measurement.
● 4-wire resistance measurement.
● Data hold function.
● Low battery indication.
● 9V DC power supply.
● Measure battery types: Li-ion, Ni-Cd, Ni-MH
● Simple operation.
● Lead resistance and contact resistance eliminated.



DC Voltage
Range : 2V / 20V / 100V
Resolution : 1mV / 10mV / 100mV
Accuracy : ±(1%rdg+1dgt) / ±(1%rdg+1dgt) /
    ±(1%rdg+1dgt)

Resistance
Range : 200mΩ / 2000mΩ / 20Ω
Resolution : 0.1mΩ / 1mΩ / 10mΩ
Accuracy : ±(3%rdg+3dgt) / ±(3%rdg+3dgt) /
    ±(3%rdg+3 dgt)
General
Low battery
indication : " sign appears on the display when
    the battery voltage drops below accurate
    operating level.
Dimensions : 192(L) × 88.6(W) × 45.2(D) mm
Weight
(battery included) : Approx. 360g
Power source : 9V(6F22) × 1
Safety standard : EN 61010-1 CAT I 100V
    EN 61326-1
