Megger OTS100AF Oil Test Kit

Category: Oil testing

Megger OTS100AF Oil Test Kit

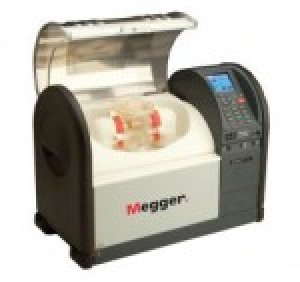

The Megger OTS100AF Oil Test Kit is a fully automatic oil test set which and is used to perform accurate breakdown voltage tests on mineral, ester and silicon insulating liquids. The Megger OTS100AF Oil Test Kit can be used for test voltages up to 100 kV.

Megger OTS100AF Oil Test Kit Features

  • Test voltages up to 100 kV
  • Lock in precision oil vessel
  • Lockable gap setting
  • Flat electrode gap gauges that will not damage electrodes
  • Automatic oil temperature measurement
  • QVGA colour display with backlight visible in sunlight
  • Large, easy clean test chamber with oil drain
  • High visibility test chamber
  • Safe operation with dual redundant micro switch
  • Power Supply – 85V to 265V, 50/60 Hz

Megger OTS100AF Oil Test Kit Contents

  • Test Vessel 400 ml assembly
  • Magnetic bead stirrers (2 off)
  • Magnetic bead retriever
  • Feeler gauge set 1, 2.0, 2.50, 2.54mm
  • User manual CD
  • PowerDB Lite software

Megger OTS100AF Oil Test Kit Optional Accessories

  • Vessel 400 ml assembly (no electrodes supplied) 1001-473
  • Vessel 150 ml assembly (no electrodes supplied) 1001-474
  • VCM100D digital voltage checker 1001-105
  • VCM80D digital voltage checker 1001-801
  • Printer paper,
  • Barcode reader,USB 1001-047
