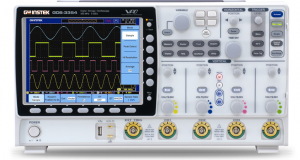

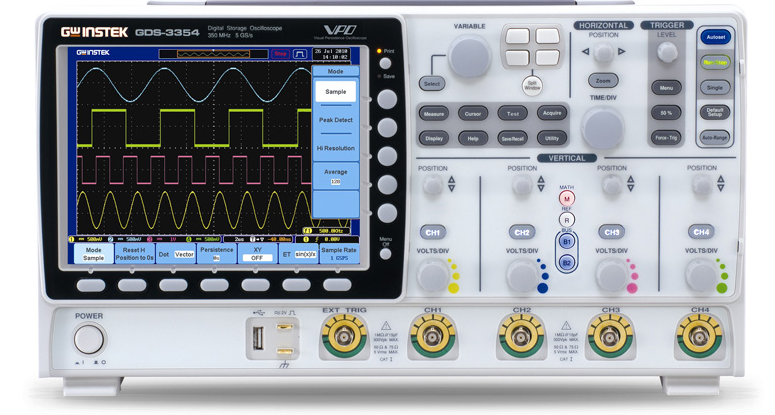

Features
* 500/350/250/150MHz with 2/4 Channels
* 5GSa/s RT or 100GSa/s ET Sampling Rate
* Independent Memory for Each Channel
* VPO Technology
* Large 8-inch 800x600 Display
* Split Screen Function
* 3 Built-in Impedances (50Ω/75Ω/1MΩ)
* Power Analysis Software (Optional)
* Serial Bus Analysis Software for I2C, SPI and UART (Optional)
A Hi-tech DSO Platform |
VPO- Visual Persistence Oscilloscope Signal Processing Technology UNIQUE SPLIT SCREEN FUNCTION
AUTO RANGE FOR BOTH TIME BASE AND VERTICAL SCALE The Auto Range function automatically adjusts the time base and/or the vertical scale of displayed waveform when the frequency and/or the amplitude of input signal changed. This function gives user the convenience to have DSO always display waveform in a proper fashion on the screen tracking the frequency and amplitude changes of the input signal. It is especially useful when the user needs to alternately probe and test multiple circuit points containing signals with different frequencies and amplitudes.
DUAL DISPLAY WINDOW ZOOM
28 AUTOMATIC MEASUREMENTS
The GDS-3000 Series supports simultaneous measurement of up to 28 waveform measurement items grouped into three main waveform parameters: amplitude, time and delay measurements. The display modes include an individual mode and a Display All mode. The former can display any 8 of the automatic measurements while the later can display all the automatic measurements for a channel.
FFT TEST FUNCTION
THREE INPUT IMPEDANCE SELECTIONS
Three input impedance, 1M , 75 , and 50 are available for user's selection. The flexibility of impedance selections, including 1M to get minimum loading effect, 75 to accommodate Video transmission applications and 50 to fit RF communication applications, extends the GDS-3000 Series utilization range.
X-Y MODE
EXTENDABLE APPLICATION SOFTWARE
WAVEFORM FILE PREVIEW
FREE REMOTE CONTROL SOFTWARE
Using a USB port coupled with FreeWave remote monitoring software is the easiest and most convenient way to capture data from the GDS-3000 Series. With FreeWave, a screenshot can be saved as an image file (.bmp/.jpg), waveform data (.csv) can be logged and movie files(.wmv) can be recorded in real-time. Not only can FreeWave monitor and record waveforms over a long period of time, but previously recorded waveforms can also be observed. Instrument settings can even be configured without the need to learn incomprehensible command line syntax. With the simple user interface and robust features, FreeWave allows you to get the most out of the GDS-3000 with little effort.
SVGA OUTPUT A SVGA video output port in the rear panel of GDS-3000 Series allows the screen-image transfer from DSO to an external projector or a monitor for remote monitoring or big screen observation. This direct image transfer feature greatly increase the efficiency of presentation in the meeting, teaching in the class, remote monitoring of hazardous events from a secured zone, and fast and easy monitoring in the production line. VARIOUS INTERFACES SUPPORT Two high-speed USB 2.0 Host ports located in both front panel and rear panel are used for easy access of stored data. In the rear panel, a USB Device port is available for remote control and hardcopy print-out through a PictBridge compatible printer. RS-232 and LAN interfaces are provided as standard for system communication & ATE applications.
A SVGA video output port allows the transfer of DSO screen image to an external projector or monitor for remote monitoring or big screen observation. A GPIB to USB adaptor is available as an option for interface conversion though the USB Device port in the front panel.
SERIAL BUS ANALYSIS SOFTWARE SUPPORTING I2C, SPI and UART (OPTIONAL)
With serial bus technology being widely used in embedded applications, the proper triggering and analysis of flowing data, control signal and associated pulse waveforms in serial bus communication has been a difficult job and challenge to design engineers. The Serial Bus Analysis software of GDS-3000 Series carries complete analysis tools for triggering and decoding of commonly used serial bus interfaces, including I2C, SPI and UART. Without spending time to study serial bus regulation details, the user only needs to set the trigger condition on GDS-3000 to get the data slots of interest.
POWER ANALYSIS SOFTWARE FOR POWER SUPPLY MEASUREMENTS (OPTIONAL)
The Power Analysis software contains four measurement functions, including Power Quality, Harmonics, Ripple and Inrush Current. The Power Quality analysis function allows the measurements of Voltage, Current, Frequency, Power and other quality related parameters for power source efficiency improvement. The Harmonics analysis function performs evaluation of power waveform distortion and gives harmonic test data for power source design and quality check. This function is complied with IEC 61000-3-2 standard. The Ripple measurement function, acquiring the ripple and noise overriding the DC waveform, is used to evaluate the DC power source quality. The Inrush Current measurement function is used to measure the power-on surge current, which may cause the damage of the device circuit.
|
Specification:
GDS-3152 | GDS-3154 | GDS-3252 | GDS-3254 | GDS-3352 | GDS-3354 | GDS-3502 | GDS-3504 | |
Vertical Sensitivity | ||||||||
Input Channels | 2Ch+EXT | 4Ch+EXT | 2Ch+EXT | 4Ch+EXT | 2Ch+EXT | 4Ch+EXT | 2Ch+EXT | 4Ch+EXT |
Bandwidth | DC~150MHz(-3dB) | DC~250MHz(-3dB) | DC~350MHz(-3dB) | DC~500MHz(-3dB) | ||||
Rise Time | 2.3ns | 1.4ns | 1ns | 700ps | ||||
Vertical Resolution | 8 bits | |||||||
Vertical Resolution @ 1MΩ | 2mV~5V/div | |||||||
Vertical Resolution @ 50/75Ω | 2mV~1V/div | |||||||
Input Coupling | AC, DC, GND | |||||||
Input Impedance | 1MΩ// 15pF | |||||||
DC Gain Accuracy | ±(3% X |Readout| + 0.1div + 1mV) | |||||||
Polarity | Normal, Invert | |||||||
Maximum Input Voltage @1MΩ | 300Vrms, CAT I(300Vrms CAT II with GTP-151R/251R/351R/501R 10:1 probe ) | |||||||
Maximum Input Voltage @50/75Ω | 5 VRMS max, CAT I | |||||||
Offset Position Range | 2mV/div ~ 100mV/div : ±0.5V ;200mV/div ~ 5V/div : ±25V | |||||||
Bandwidth Limit | GDS-3152/3154:20MHz (-3dB) |
GDS-3252/3254: 20MHz/100MHz (-3dB) | GDS-3352/3354: 20MHz/100MHz/ 200MHz (-3dB) |
GDS-3502/3504: 20MHz/ 100MHz/ 200MHz/ 350MHz (-3dB) | ||||
Waveform Signal Process | Add, subtract, multiply, and divide waveforms, FFT, FFTrms | |||||||
FFT: Spectral magnitude. | ||||||||
Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning or Blackman-Harris.Integration*, Differentiation* *: App installation required | ||||||||
Trigger | ||||||||
Source | 2 CH model: CH1, CH2, Line, EXT | |||||||
4 CH model: CH1, CH2, CH3, CH4, Line, EXT | ||||||||
Trigger Mode | Auto (supports Roll Mode for 100 ms/div and slower), Normal, Single Sequence | |||||||
Trigger Type | Edge, Pulse Width(Glitch), Video, Runt, Rise & Fall(Slope), Alternate, Event-Delay(1~65,535 events), Time-Delay(Duration ,10ns~10s), |
|||||||
I²C, SPI, UART(optional) | ||||||||
Runt: Trigger on a pulse that crosses one threshold but fails to cross a second threshold before crossing the first again. | ||||||||
I²C (optional) | ||||||||
Trigger on Start, Repeated Start, Stop, Missing ACK, Address (7 or 10 bit), Data, or Address and Data on I²C buses | ||||||||
SPI (optional) | ||||||||
Trigger on SS, MOSI, MISO, or MOSI and MISO on SPI buses | ||||||||
UART (optional) | ||||||||
Trigger on Tx Start Bit, Rx Start Bit, Tx End of Packet, Rx End of Packet, Tx Data, Rx Data, Tx Parity Error, and Rx Parity Error | ||||||||
Trigger Holdoff Range | 10ns~10s | |||||||
Coupling | AC, DC, LF rej., Hf rej., Noise rej. | |||||||
Sensitivity | DC ~ 50MHz Approx. 1div or 10mV | |||||||
50MHz ~ 350MHz Approx. 1.5div or 15mV | ||||||||
EXT Trigger | ||||||||
Range | ±15V | |||||||
Sensitivity | DC ~ 150MHz Approx. 100mV ;150MHz ~ 250MHz Approx. 150mV 250MHz ~ 350MHz Approx. 150mV ;350MHz ~ 500MHz Approx. 200mV |
|||||||
Input Impedance | 1MΩ±3%, ~16pF | |||||||
Horizontal | ||||||||
Time base range | 1ns/div ~ 100s/div (1-2-5 increments;GDS-3502/3504:1-2.5-5 increments); ROLL : 100ms/div ~ 100s/div | |||||||
Pre-trigger | 10 div maximum | |||||||
Post-trigger | 1,000 div | |||||||
Time base accuracy | ±20 ppm over any ≧1 ms time interval | |||||||
X-Y Mode | ||||||||
X-Axis Input | Channel 1; Channel 3 | |||||||
Y-Axis Input | Channel 2; Channel 4 | |||||||
Phase Shift | ±3° at 100kHz | |||||||
Signal Acquisition | ||||||||
Real Time Sample Rate | 2.5GSa/s | 5GSa/s | 2.5GSa/s | 5GSa/s | 5GSa/s | 5GSa/s | 4GSa/s | 4GSa/s |
ET Sample Rate | 100GSa/s maximum for all models | |||||||
Record Length | 25k points/ channel | |||||||
Acquisition Mode | Normal, Average, Peak detect, High resolution, Single | |||||||
Normal: Acquire sampled values. | ||||||||
Average: From 2 ~256 waveforms included in average. | ||||||||
Peak Detect: Captures glitches as narrow as 2 ns at all sweep speeds | ||||||||
Hi Res: Real-time boxcar averaging reduces random noise and increases vertical resolution. | ||||||||
Cursors and Measurement | ||||||||
Cursors | Amplitude, Time, Gating available | |||||||
Automatic Measurement | 28 sets: Vpp , Vamp , Vavg , Vrms , Vhi , Vlo , Vmax , Vmin , Rise Preshoot/ Overshoot , Fall Preshoot/Overshoot, Freq , Period , Rise Time , Fall Time , Positive Width , Negative Width , Duty Cycle, Phase angle, and eight different delay measurements (FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF) | |||||||
Cursors measurement | Voltage difference between cursors ( ∆V) Time difference between cursors ( ∆T) | |||||||
Auto counter | 6 digits, range from 2Hz minimum to the rated bandwidth | |||||||
Power Measurements (option) | ||||||||
Power Quality | VRMS, VCrest Factor, Frequency, IRMS, ICrest Factor, True | |||||||
Measurements | Power, Apparent power, Reactive power, Power factor, Phase angle. | |||||||
Harmonics | Freq, Mag, Mag rms, Phase, THD-F, THD-R, RMS | |||||||
Ripple Measurements | V ripple ,I ripple | |||||||
In-rush current | First peak, Second peak | |||||||
Control Panel Function | ||||||||
Autoset | Single-button, automatic setup of all channels for vertical, horizontal and trigger systems, with undo autoset | |||||||
Auto-Range | Allow users to quickly move from test point to test point without having to reset the oscilloscope for each test point | |||||||
Save Setup | 20 set | |||||||
Save Waveform | 24 set | |||||||
Display System | ||||||||
TFT LCD Type | 8" TFT LCD SVGA color display | |||||||
Display mode | YT ;XY | |||||||
Display Resolution | 800 horizontal × 600 vertical pixels (SVGA) | |||||||
Interpolation | Sin(x)/x & Equivalent time sampling | |||||||
Waveform Display | Dots, vectors, variable persistence, infinite persistence | |||||||
Display Graticule | 8 x 10 divisions | |||||||
Display Brightness | Adjustable | |||||||
Waveform capture rate |
3500 waveform /sec real time
|
|||||||
Interface | ||||||||
RS-232C | DB-9 male connector | |||||||
USB Port | 2 sets USB 2.0 High-speed host port ; 1 set USB High-speed 2.0 device port | |||||||
Ethernet (LAN)Port | RJ-45 connector, 10/100Mbps | |||||||
SVGA Video Port | DB-15 female connector, monitor output for display on SVGA monitors | |||||||
GPIB | GPIB to USB Adapter (GUG-001 Option) | |||||||
Go/NoGo BNC | 5V Max/10mA TTL Open collector output | |||||||
Internal flash disk | 64MB | |||||||
Kensington Style Lock | Rear-panel security slot connects to standard Kensington-style lock. | |||||||
Line output | 3.5mm stereo jack for Go/NoGo audio alarm | |||||||
Power Source | ||||||||
Line Voltage range | AC 100V ~ 240V, 48Hz ~ 63Hz, Auto selection | |||||||
operation environment | Temperature: 0°C to 50°C. Relative Humidity ≤ 80% at 40°C or below; ≤ 45% at 41°C ~ 50°C | |||||||
Miscellaneous | ||||||||
Multi-language menu | Available | |||||||
On-line help | Available | |||||||
Time clock | Time and Data, Provide the Data/Time for saved data | |||||||
Dimensions & Weight | 400(W) X 200(H) X 130(D)mm, approx 4 kg |
User manual *1, Power code *1,
GTP-151R: 150MHz(10:1) passive probe for GDS-3152/ 3154 (per channel)
GTP-251R: 250MHz(10:1) passive probe for GDS-3252/ 3254 (per channel)
GTP-351R: 350MHz(10:1) passive probe for GDS-3352/ 3354 (per channel)
GTP-501R: 500MHz(10:1) passive probe for GDS-3502/ 3504 (per channel)
Optional Accessories:
GTC-001 | Instrument cart,450(W) x 430(D)mm (120V input socket) |
GTC-002 | Instrument cart 330(W) x 430(D)mm (120V input scoket) |
GTL-110 | Test lead, BNC to BNC connector |
GTL-232 | RS-232C cable, 9-pin female to 9-pin female, Null Modem for computer |
GTL-242 | USB 1.1 cable, A-B type cable 4P, 1800mm |
GTP-033A | 35MHz 1:1 passive probe |
GTP-352R | 350MHz(20:1) passive probe |
Differential Probe | GDP-025: 25MHz high voltage differential probe GDP-050: 50MHz 25MHz high voltage differential probe GDP-100: 100MHz 25MHz high voltage differential probe |
Current Probe |
GCP-020 :10KHz/200A current probe GCP-100 :100KHz/100A current probe GCP-530: 50MHz/ 30A current probe |
Ordering Information:
GDS-3152 | 150MHz, 2 channel, color LCD display DSO |
GDS-3154 | 150MHz, 4 channel, color LCD display DSO |
GDS-3252 | 250MHz, 2 channel, color LCD display DSO |
GDS-3254 | 250MHz, 4 channel, color LCD display DSO |
GDS-3352 | 350MHz, 2 channel, color LCD display DSO |
GDS-3354 | 350MHz, 4 channel, color LCD display DSO |
GDS-3502 | 500MHz , 2 channel, color LCD display DSO |
GDS-3504 | 500MHz , 4 Channel , color LCD display DSO |
Option:
GUG-001 | GPIB to USB adapter |
DS3-SBD | Serial bus analysis software I2C / SPI/ UART (for 4 channel modelonly) |
DS3-PWR | Power analysis software: Power quality/Harmonic/Ripple/In-rush current measurement |
