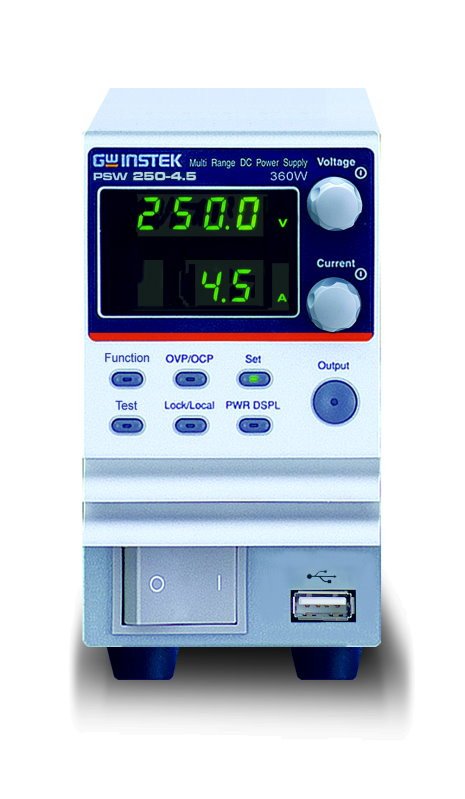

GW INSTEK PSW Series

Features:

Features * Voltage Rating: 30V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W
* Constant Power Output for Multiple Range (V&I) Operation
* CV/CC Priority; Particularly Suitable for the Battery and LED Industry
* Adjustable Slew Rate
* Series Operation: Up to 2 units (30V, 80V, 160V models only)
* Parallel Operation: Up to 3 units
* High Efficiency and High Power Density
* 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W/720W/1080W
* Standard Interface: LAN,USB,Analog Control Interface
* Optional Interface: GPIB-USB Adaptor
* LabView Driver

Description:

The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include fifteen models with the combination of 30V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range. As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.

The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode. Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage.

The adjustable slew rate of the PSW-Series allows user to set for either output voltage or output current a specific rise time at the low to high level transition, and a specific fall time at the high to low level transition. This facilitates the characteristic verification of a DUT during voltage or current level changes with controllable slew rates. The manufacturing tests of lighting device or large capacitor during power output-on are mostly associated with the occurrence of high surge current, which can greatly reduce the life time of the DUT. To prevent inrush current from damaging current-intensive devices, a smooth and slow voltage transition during power on-off can significantly reduce the spike current and protect the device from high current damage.

The OVP and OCP are provided with the PSW-Series. Both OVP and OCP levels can be selected, with default level set at 110%, of the rated voltage/current of the power supply. When any of the protection level is tripped, the power output will be switched off to protect the DUT. The PSW-Series provides USB Host/Device and LAN interfaces as standard and GPIB-USB adaptor as optional. The LabView driver and the Data Logging PC software are supported on all the available interfaces. An analog control/monitoring connector is also available on the rear panel for external control of power On/Off and external monitoring of power output Voltage and Current.

Multi-Range Operation

In the comparison with the maximum power output of the conventional power supply that is calculated by the maximum output voltage multiplies by the maximum output current, the PSW series has a unique characteristic of multi-range output (voltage x current). This distinguishing feature, under the same maximum power output range, can output a higher voltage with a smaller current and vice versa. For instance, for a conventional power supply with a maximum power output of 720W, the maximum voltage and current outputs are likely to be 90V and 8A respectively. Comparatively, PSW 250-9, with the maximum power output of 720W, provides voltage and current output ranges of 0~250V and 0~9A. The maximum current of 9A will be provided when the maximum voltage is 80V and the maximum voltage of 250V for current of 2.88A. The following diagrams illustrate the characteristics of PSW output voltage and current.



PSW 30V Series Operational Curve PSW 80V Series Operational Curve

PSW 160V Series Operational Curve PSW 250V Series Operational Curve

PSW 800V Series Operational Curve


Series and Parallel Connections

To increase power output capacity, the PSW-Series could be connected in Series mode to perform double voltage rating or in parallel mode to perform triple current rating for each model and maximum power is 3.24KW.

With Multi-Range feature and Series/Parallel connection capability, the PSW-Series is a high power density and cost-effective equipment.


Series Connection Parallel Connection
PSW 250V/800V only support parallel connections and maximum units in parallel is three

C.V/C.C Priority Selection

The PSW series has C.C and C.V priority mode which sufficiently satisfies market demands. For special application requirements and specific demands, power supply system must be equipped with advanced functions. The C.C. priority mode of the PSW series allows power supply to operate under C.C. mode instead of C.V mode during the transient output so as to effectively protect DUTs. The conventional power supply normally operates under C.V mode when output is turned on that will instantly produce a high inrush current on load with diode characteristics. By using the I-V curve of LED as an example, the conventional power supply cannot conduct the related test and measurement operation. Connect LED with power supply under C.V mode and activate output operation. When the voltage exceeds the forward voltage of LED, current will abruptly increase and exceed the preset current limit. Once the inrush current is detected, power supply will convert C.V mode into C.C mode. After the transition, current seems to be more stable. However, the peak current at the crossover of C.C. and C.V is likely to induce damage to DUTs. The C.C. priority mode of the PSW series allows power supply to operate under C.C. mode to avoid peak current during the transient output so as to effectively prevent DUTs from being damaged by inrush current.



Under the conventional C.V mode, inrush current and surge voltage appeared at forward voltage (Vf) of LED Under C.C priority mode, inrush and surge voltage are effectively restrained.


V-I Characteristics for Diode GDS-3354 digital oscilloscope is used to test LED under C.V priority mode and C.C priority mode respectively.


Adjustable Slew Rate

The PSW-Series has adjustable slew rates for the level transition of both Current and Voltage. This gives the PSW-Series power supply the ability to set specific rise time and fall time of the Voltage and Current drawn from the power supply to verify DUT performance during the Voltage / Current level transition. The feature also provides the benefit to slow down the voltage transition at the power output-on to protect DUT from inrush current damage. This is especially useful for the test of heavy-current-drawn devices like capacitors.



The Adjustable Rise Time of the PSW 30V

  The Adjustable Rise Time of the PSW 800V


Bleeder Control Circuit

The PSW power supply series has a bleeder control circuit which is in parallel with the output terminal. When power is off or load is disconnected, bleeder resistor will discharge the filter capacitor. Without a bleeder resistor, the filter capacitor of power could still be charged with electricity that poses a potential danger. In addition, for ATE system, bleeder resistor allows PSW to bleeder current rapidly so as to prepare itself for the next operation.



Output On/Off Delay


The Example of Output On/Off Delay Control for Multiple PSW Units

The output on/off delay feature enables the setting at a specific time delay for output on after the power supply output is turned on, and a specific time delay for output off after the power supply output is turned off. When multiple PSW units are used, the on/off delay time of each unit can be set respectively referring to fix time points.

External Analog Remote Control Terminal

On the rear panel of the PSW Series power supply, a 26-pin analog control terminal is designed to perform remote control and monitoring functions. External voltage or resistor can be utilized to set output voltage and current. The power supply output on/off control and master power shut-down can also be controlled by using the external switch. The analog control terminal is complied with the Mil 26-pin connector (OMRON XG4 IDC plug) standard.

(1) External voltage controls voltage/current output
(2) External resistor controls voltage/current output
(3) External switch controls output
(4) External switch controls master power shut-down
(5) External DMM measures voltage output
(6) External DMM measures current output

Specification:



PSW-360W
Model PSW 30-36 80-13.5 160-7.2 250-4.5 800-1.44
Rated Output Voltage V 30 80 160 250 800
Rated Output Current A 36 13.5 7.2 4.5 1.44
Rated Output Power W 360 360 360 360 360
Power Ratio -- 3 3 3.2 3.125 3.2
Constant Voltage Mode PSW 30-36 80-13.5 160-7.2 250-4.5 800-1.44
Line Regulation (*1) mV 18 43 83 128 403
Load Regulation (*2) mV 20 45 85 130 405
Ripple and Noise (*3)
  p-p (*4) mV 60 60 60 80 150
  r.m.s (*5) mV 7 7 12 15 30
Temperature coefficient ppm/°C 100ppm/°C of rated output voltage, after a 30 minute warm-up.
Remote sense compensation voltage V/wire 0.6 0.6 0.6 1 1
Rise Time (*6)
  Rated Load ms 50 50 100 100 150
  No Load ms 50 50 100 100 150
Fall Time (*7)
  Rated Load ms 50 50 100 150 300
  No Load ms 500 500 1000 1200 2000
Transient response time (*8) ms 1 1 2 2 2
Constant Current Mode PSW 30-36 80-13.5 160-7.2 250-4.5 800-1.44
Line regulation (*1) mA 41 18.5 12.2 9.5 6.44
Load regulation (*9) mA 41 18.5 12.2 9.5 6.44
Ripple and noise
  r.m.s (*5 ) mA 72 27 15 10 5
Temperature coefficient ppm/°C 200ppm/°C of rated output current, after a 30 minute  warm-up.
Protection Function PSW 30-36 80-13.5 160-7.2 250-4.5 800-1.44
Over voltage protection (OVP)
  Setting range V 3-33 8-88 16-176 20-275 20-880
  Setting accuracy   ± (2% of rated output voltage)
Over current protection (OCP)
  Setting range A 3.6-39.6 1.35-14.85 0.72-7.92 0.45-4.95 0.144-1.584
  Setting accuracy   ± (2% of rated output current)
Over temperature protection (OTP)
  Operation   Turn the output off.
Low AC input protection (AC-FAIL)
  Operation   Turn the output off.
Power limit (POWER LIMIT)
  Operation   Over power limit.
  Value (fixed)   Approx. 105% of rated output power
Front Panel PSW 30-36 80-13.5 160-7.2 250-4.5 800-1.44
Display, 4 digits
  Voltage accuracy 0.1% + mV 20 20 100 200 400
  Current accuracy 0.1% + mA 40 20 5 5 2
Programming and Measurement (Interface) PSW 30-36 80-13.5 160-7.2 250-4.5 800-1.44
Voltage programming accuracy 0.1% + mV 10 10 100 200 400
Current programming accuracy 0.1% + mA 30 10 5 5 2
Voltage programming resolution mV 1 2 3 5 14
Current programming resolution mA 1 1 1 1 1
Voltage measurement accuracy 0.1% + mV 10 10 100 200 400
Current measurement accuracy 0.1% + mA 30 10 5 5 2
Voltage measurement resolution mV 1 2 3 5 14
Current measurement resolution mA 1 1 1 1 1

PSW-720W
Model PSW 30-72 80-27 160-14.4 250-9 800-2.88
Rated Output Voltage V 30 80 160 250 800
Rated Output Current A 72 27 14.4 9 2.88
Rated Output Power W 720 720 720 720 720
Power Ratio -- 3 3 3.2 3.125 3.2
Constant Voltage Mode PSW 30-72 80-27 160-14.4 250-9 800-2.88
Line Regulation (*1) mV 18 43 83 128 403
Load Regulation (*2) mV 20 45 85 130 405
Ripple and Noise (*3)
  p-p (*4) mV 80 80 80 100 200
  r.m.s (*5) mV 11 11 15 15 30
Temperature coefficient ppm/°C 100ppm/°C of rated  output voltage, after a 30 minute warm-up.
Remote sense compensation voltage V/wire 0.6 0.6 0.6 1 1
Rise Time (*6)
  Rated Load ms 50 50 100 100 150
  No Load ms 50 50 100 100 150
Fall Time (*7)
  Rated Load ms 50 50 100 150 300
  No Load ms 500 500 1000 1200 2000
Transient response time (*8) ms 1 1 2 2 2
Constant Current Mode PSW 30-72 80-27 160-14.4 250-9 800-2.88
Line regulation (*1) mA 77 32 19.4 14 7.88
Load regulation (*9) mA 77 32 19.4 14 7.88
Ripple and noise
  r.m.s (*5 ) mA 144 54 30 20 10
Temperature coefficient ppm/°C 200ppm/°C of rated output current, after a 30 minute warm -up.
Protection Function PSW 30-72 80-27 160-14.4 250-9 800-2.88
Over voltage protection (OVP)
  Setting range V 3-33 8-88 16-176 20-275 20-880
  Setting accuracy   ± (2% of rated output voltage)
Over current protection (OCP)
  Setting range A 5-79.2 2.7-29.7 1.44-15.84 0.9-9.9 0.288-3.168
  Setting accuracy   ± (2% of rated output current)
Over temperature protection (OTP)
  Operation   Turn the output off.
Low AC input protection (AC-FAIL)
  Operation   Turn the output off.
Power limit (POWER LIMIT)
  Operation   Over power limit.
  Value (fixed)   Approx. 105% of rated output power
Front Panel PSW 30-72 80-27 160-14.4 250-9 800-2.88
Display, 4 digits
  Voltage accuracy 0.1% + mV 20 20 100 200 400
  Current accuracy 0.1% + mA 70 40 30 10 4
Programming and Measurement (Interface) PSW 30-72 80-27 160-14.4 250-9 800-2.88
Voltage programming accuracy 0.1% + mV 10 10 100 200 400
Current programming accuracy 0.1% + mA 60 30 15 10 4
Voltage programming resolution mV 1 2 3 5 14
Current programming resolution mA 2 2 2 1 1
Voltage measurement accuracy 0.1% + mV 10 10 100 200 400
Current measurement accuracy 0.1% + mA 60 30 15 10 4
Voltage measurement resolution mV 1 2 3 5 14
Current measurement resolution mA 2 2 2 1 1

PSW-1080W
Model PSW 30-108 80-40.5 160-21.6 250-13.5 800-4.32
Rated Output Voltage V 30 80 160 250 800
Rated Output Current A 108 40.5 21.6 13.5 4.32
Rated Output Power W 1080 1080 1080 1080 1080
Power Ratio -- 3 3 3.2 3.125 3.2
Constant Voltage Mode PSW 30-108 80-40.5 160-21.6 250-13.5 800-4.32
Line Regulation (*1) mV 18 43 83 128 403
Load Regulation (*2) mV 20 45 85 130 405
Ripple and Noise (*3)
  p-p (*4) mV 100 100 100 120 200
  r.m.s (*5) mV 14 14 20 15 30
Temperature coefficient ppm/°C 100ppm/°C of ra ted output voltage, after a 30 minute warm-up.
Remote sense compensation voltage V/wire 0.6 0.6 0.6 1 1
Rise Time (*6)
  Rated Load ms 50 50 100 100 150
  No Load ms 50 50 100 100 150
Fall Time (*7)
  Rated Load ms 50 50 100 150 300
  No Load ms 500 500 1000 1200 2000
Transient response time (*8) ms 1 1 2 2 2
Constant Current Mode PSW 30-108 80-40.5 160-21.6 250-13.5 800-4.32
Line regulation (*1) mA 113 45.5 26.6 18.5 9.32
Load regulation (*9) mA 113 45.5 26.6 18.5 9.32
Ripple and noise
  r.m.s (*5 ) mA 216 81 45 30 15
Temperature coefficient ppm/°C 200ppm/°C of rated output current, after a 30 minute warm-up .
Protection Function PSW 30-108 80-40.5 160-21.6 250-13.5 800-4.32
Over voltage protection (OVP)
  Setting range V 3-33 8-88 16-176 20-275 20-880
  Setting accuracy   ± (2% of rated output voltage)
Over current protection (OCP)
  Setting range A 5-118.8 4.05-44.55 2.16-23.76 1.35-14.85 0.432-4.752
  Setting accuracy   ± (2% of rated output current)
Over temperature protection (OTP)
  Operation   Turn the output off.
Low AC input protection (AC-FAIL)
  Operation   Turn the output off.
Power limit (POWER LIMIT)
  Operation   Over power limit.
  Value (fixed)   Approx. 105% of rated output power
Front Panel PSW 30-108 80-40.5 160-21.6 250-13.5 800-4.32
Display, 4 digits
  Voltage accuracy 0.1% + mV 20 20 100 200 400
  Current accuracy 0.1% + mA 100 50 30 20 6
Programming and Measurement (Interface) PSW 30-108 80-40.5 160-21.6 250-13.5 800-4.32
Voltage programming accuracy 0.1% + mV 10 10 100 200 400
Current programming accuracy 0.1% + mA 100 40 20 15 6
Voltage programming resolution mV 1 2 3 5 14
Current programming resolution mA 3 3 3 1 1
Voltage measurement accuracy 0.1% + mV 10 10 100 200 400
Current measurement accuracy 0.1% + mA 100 40 20 15 6
Voltage measurement resolution mV 1 2 3 5 14
Current measurement resolution mA 3 3 3 1 1

Common Specification
Input Characteristics PSW 30V 80V 160V 250V 800V
Nominal input rating   100Vac to 240Vac, 50Hz to 60Hz, single phase
Input voltage range   85Vac ~ 265Vac
Input voltage range   47Hz ~ 63Hz
Maximum input current
  100Vac A 360W: 5A, 720W: 10A, 1080W: 15A
  200Vac A 360W: 2.5A, 720W: 5A, 1080W: 7.5A
Inrush current A < 25A for 360W, < 50A for 720W, < 75A for 1080W
Maximum input power VA 360W: 500VA, 720W: 1000VA, 1080W: 1500VA
Power factor
  100Vac   0.99
  200Vac   0.97
Efficiency
  100Vac % 77 78 79 79 80
  200Vac % 79 80 81 81 82
Hold-up time   20ms or greater
Analog Programming and Monitoring PSW 30V 80V 160V 250V 800V
External voltage control output voltage   Accuracy and linearity: ±0.5% of rated output voltage.
External voltage control output current   Accuracy and linearity: ±1% of rated output current.
External resistor control output voltage   Accuracy and linearity: ±1.5% of rated output voltage.
External resistor control output current   Accuracy and linearity: ±1.5% of rated output current.
Output voltage monitor
  Accuracy % ±1 ±1 ±1 ±2 ±2
Output current monitor
  Accuracy % ±1 ±1 ±1 ±2 ±2
Shutdown control   Turns the output off with a LOW (0V to 0.5V) or short-circuit.
Output on/off control   Possible logic selections:
Turn the output on using a LOW (0V to 0.5V) or short-circuit, turn the output off using a HIGH (4.5V to 5V) or open-circuit.
Turn the output on using a HIGH (4.5V to 5V) or open-circuit, turn the output off using a LOW (0V to 0.5V) or short-circuit.
CV/CC/ALM/PWR ON/OUT ON indicator   Photocoupler open collector output; Maximum voltage 30V, maximum sink current 8mA.
Series and Parallel Capability PSW 30V 80V 160V 250V 800V
Parallel number Units 3 3 3 3 3
Series Number Units 2 2 2 None None
Front Panel
Indications   GREEN LED's:
CV, CC, VSR, ISR, DLY, RMT, 20, 40, 60, 80, 100, %W, W, V, A
RED LED's: ALM
Buttons   Function, OVP/OCP, Set, Test, Lock/Local, PWR DSPL, Output
Knobs   Voltage, Current
USB port   Type A USB connector
Interface Capabilities
USB   TypeA: Host, TypeB: Slave, Speed: 1.1/2.0, USB Class: CDC(Communications Device Class)
LAN   MAC Address, DNS IP Address, User Password, Gateway IP Address, Instrument IP Address, Subnet Mask
GPIB   Optional: GUG-001 (GPIB to USB Adapter)
Environmental Conditions
Operating temperature   0˚C to 50˚C
Storage temperature   -25˚C to 70˚C
Operating humidity   20% to 85% RH; No condensation
Storage humidity   90% RH or less; No condensation
Altitude   Maximum 2000m
General Specifications
Weight (main unit only) kg Approx. 3kg for 360W,
Approx. 5.3kg for 720W,
Approx. 7.5kg for 1080W
Dimensions (WxHxD) mm3  360W: 71×124×350mm,
720W: 142×124×350mm,
1080W: 214×124×350mm
Cooling   Forced air cooling by internal fan.
EMC   Complies with the European EMC directive 2004/108 /EC for Class A test and measurement products.
Safety   Complies with the European Low Voltage Directive 2006 /95/EC and carries the CE-marking.
Withstand voltage   Between input and chassis: No abnormalities at 1500 Vac for 1 minute.
Between input and output: No abnormalities at 3000 Vac for 1 minute.
Between output and chassis:
No abnormalities at 500 Vdc for 1 minute for 30V, 80V, 160V models.
No abnormalities at 1500 Vdc for 1 minute for 250V, 800V models.
Insulation resistance   Between input and chassis: 500 Vdc, 100MΩ or more
Between input and output: 500 Vdc, 100MΩ or more
Between output and chassis:
500 Vdc, 100MΩ or more for 30V, 80V, 160V and 250V models.
1000Vdc, 100MΩ or more for 800V models.



Notes



*1: At 85 ~ 132Vac or 170 ~ 265Vac, constant load.
*2: From No-load to Full-load, constant input voltage. Measured at the sensing point in Remote Sense.
*3: Measure with JEITA RC-9131B (1:1) probe
*4: Measurement frequency bandwidth is 10Hz to 20MHz.
*5: Measurement frequency bandwidth is 5Hz to 1MHz.
*6: From 10% to 90% of rated output voltage, with rated resistive load.
*7: From 90% to 10% of rated output voltage, with rated resistive load.
*8: Time for output voltage to recover within 0.1% + 10mV of its rated output for a load change from 50 to 100% of its rated output current.
*9: For load voltage change, equal to the unit voltage rating, constant input voltage.



Accessories:

CD-ROM User manual and programming manual
Region dependent Power cord for Type I / II
Region dependent Power cord for Type III
GTL-240 USB Cable
1042-SWLV0301 Output terminal cover for 30V/80V/160V models
1042-SWHV0301 Output terminal cover for 250V/800V models
PSW-004 Basic Accessory Kit for 30V/80V/160V models
PSW-008 Basic Accessory Kit for 250V/800V models
GTL-123 Test leads: 1x red, 1x black, for 30V/80V/160V model
39BT-50900401 High voltage output terminal for 250V/800V model

Optional Accessories
GET-001  Extended terminal for 30V/80V/160V models
GET-002
  Extended terminal for 250V/800V models
PSW-001  Accessory kits for PSW-Series
PSW-002  Simple IDC Tool
PSW-003  Contact Removal Tool
PSW-005  Series operation cable for 2 units. (30V/80V/160V models moly)
PSW-006  Parallel operation cable for 2 units.
PSW-007  Parallel operation cable for 3 units.
GRA-410-J  Rack mount adapter (JIS)
GRA-410-E  Rack mount adapter (EIA)
GUG-001  GPIB to USB adapter
GTL-130
  Test leads: 2 x red, 2 x black for 250V/800V models
GTL-240  USB Cable
57RG-30B00201  Large filter (Type II/III)


Ordering information:

PSW-Series Multi-Range DC Power Supply

Model Name Type Voltage Current Power
PSW 30-36 I 0 ~ 30V 0 ~ 36A 360W
PSW 30-72 II 0 ~ 30V 0 ~ 72A 720W
PSW 30-108 III 0 ~ 30V 0 ~ 108A 1080W
PSW 80-13.5 I 0 ~ 80V 0 ~ 13.5A 360W
PSW 80-27 II 0 ~ 80V 0 ~ 27A 720W
PSW 80-40.5 III 0 ~ 80V 0 ~ 40.5A 1080W
PSW 160-7.2 I 0 ~ 160V 0 ~ 7.2A 360W
PSW 160-14.4 II 0 ~ 160V 0 ~ 14.4A 720W
PSW 160-21.6 III 0 ~ 160V 0 ~ 21.6A 1080W
PSW 250-4.5 I 0 ~ 250V 0 ~ 4.5A 360W
PSW 250-9 II 0 ~ 250V 0 ~ 9A 720W
PSW 250-13.5 III 0 ~ 250V 0 ~ 13.5A 1080W
PSW 800-1.44 I 0 ~ 800V 0 ~ 1.44A 360W
PSW 800-2.88 II 0 ~ 800V 0 ~ 2.88A 720W
PSW 800-4.32 III 0 ~ 800V 0 ~ 4.32A 1080W



Downlod:

Marcom Tool

Description
Brochure    5608 K     PSW-Series Brochure(with 250V/800V)    EN    VB   2014/07/31


Manual

Description
PSW-Series User Manual    5189 K     PSW-Series User Manual    en    VH   2014/07/31
Programming Manual    2733 K     Programming & Command manual    en    V1   2014/7/31


Software

Description
Labview Driver    380 K     For LabView 7.X Version    en    VA   2011/7/19
USB Driver    6 K     PSW USB driver for windows 8.1 included all version    en    VB   2014/08/19
Labview Driver    623 K     For LabView 8.X Version    en    VB   2014/07/31
PC Software    18933 K     PSW-Series PC Software    EN    V2   2014/08/22
LabView Driver    638 K     For LabView 2009 Version    en    VA   2014/07/31
PSW-360W
Model PSW 30-36 80-13.5 160-7.2 250-4.5 800-1.44
Rated Output Voltage V 30 80 160 250 800
Rated Output Current A 36 13.5 7.2 4.5 1.44
Rated Output Power W 360 360 360 360 360
Power Ratio -- 3 3 3.2 3.125 3.2
Constant Voltage Mode PSW 30-36 80-13.5 160-7.2 250-4.5 800-1.44
Line Regulation (*1) mV 18 43 83 128 403
Load Regulation (*2) mV 20 45 85 130 405
Ripple and Noise (*3)
  p-p (*4) mV 60 60 60 80 150
  r.m.s (*5) mV 7 7 12 15 30
Temperature coefficient ppm/°C 100ppm/°C of rated output voltage, after a 30 minute warm-up.
Remote sense compensation voltage V/wire 0.6 0.6 0.6 1 1
Rise Time (*6)
  Rated Load ms 50 50 100 100 150
  No Load ms 50 50 100 100 150
Fall Time (*7)
  Rated Load ms 50 50 100 150 300
  No Load ms 500 500 1000 1200 2000
Transient response time (*8) ms 1 1 2 2 2
Constant Current Mode PSW 30-36 80-13.5 160-7.2 250-4.5 800-1.44
Line regulation (*1) mA 41 18.5 12.2 9.5 6.44
Load regulation (*9) mA 41 18.5 12.2 9.5 6.44
Ripple and noise
  r.m.s (*5 ) mA 72 27 15 10 5
Temperature coefficient ppm/°C 200ppm/°C of rated output current, after a 30 minute  warm-up.
Protection Function PSW 30-36 80-13.5 160-7.2 250-4.5 800-1.44
Over voltage protection (OVP)
  Setting range V 3-33 8-88 16-176 20-275 20-880
  Setting accuracy   ± (2% of rated output voltage)
Over current protection (OCP)
  Setting range A 3.6-39.6 1.35-14.85 0.72-7.92 0.45-4.95 0.144-1.584
  Setting accuracy   ± (2% of rated output current)
Over temperature protection (OTP)
  Operation   Turn the output off.
Low AC input protection (AC-FAIL)
  Operation   Turn the output off.
Power limit (POWER LIMIT)
  Operation   Over power limit.
  Value (fixed)   Approx. 105% of rated output power
Front Panel PSW 30-36 80-13.5 160-7.2 250-4.5 800-1.44
Display, 4 digits
  Voltage accuracy 0.1% + mV 20 20 100 200 400
  Current accuracy 0.1% + mA 40 20 5 5 2
Programming and Measurement (Interface) PSW 30-36 80-13.5 160-7.2 250-4.5 800-1.44
Voltage programming accuracy 0.1% + mV 10 10 100 200 400
Current programming accuracy 0.1% + mA 30 10 5 5 2
Voltage programming resolution mV 1 2 3 5 14
Current programming resolution mA 1 1 1 1 1
Voltage measurement accuracy 0.1% + mV 10 10 100 200 400
Current measurement accuracy 0.1% + mA 30 10 5 5 2
Voltage measurement resolution mV 1 2 3 5 14
Current measurement resolution mA 1 1 1 1 1

PSW-720W
Model PSW 30-72 80-27 160-14.4 250-9 800-2.88
Rated Output Voltage V 30 80 160 250 800
Rated Output Current A 72 27 14.4 9 2.88
Rated Output Power W 720 720 720 720 720
Power Ratio -- 3 3 3.2 3.125 3.2
Constant Voltage Mode PSW 30-72 80-27 160-14.4 250-9 800-2.88
Line Regulation (*1) mV 18 43 83 128 403
Load Regulation (*2) mV 20 45 85 130 405
Ripple and Noise (*3)
  p-p (*4) mV 80 80 80 100 200
  r.m.s (*5) mV 11 11 15 15 30
Temperature coefficient ppm/°C 100ppm/°C of rated  output voltage, after a 30 minute warm-up.
Remote sense compensation voltage V/wire 0.6 0.6 0.6 1 1
Rise Time (*6)
  Rated Load ms 50 50 100 100 150
  No Load ms 50 50 100 100 150
Fall Time (*7)
  Rated Load ms 50 50 100 150 300
  No Load ms 500 500 1000 1200 2000
Transient response time (*8) ms 1 1 2 2 2
Constant Current Mode PSW 30-72 80-27 160-14.4 250-9 800-2.88
Line regulation (*1) mA 77 32 19.4 14 7.88
Load regulation (*9) mA 77 32 19.4 14 7.88
Ripple and noise
  r.m.s (*5 ) mA 144 54 30 20 10
Temperature coefficient ppm/°C 200ppm/°C of rated output current, after a 30 minute warm -up.
Protection Function PSW 30-72 80-27 160-14.4 250-9 800-2.88
Over voltage protection (OVP)
  Setting range V 3-33 8-88 16-176 20-275 20-880
  Setting accuracy   ± (2% of rated output voltage)
Over current protection (OCP)
  Setting range A 5-79.2 2.7-29.7 1.44-15.84 0.9-9.9 0.288-3.168
  Setting accuracy   ± (2% of rated output current)
Over temperature protection (OTP)
  Operation   Turn the output off.
Low AC input protection (AC-FAIL)
  Operation   Turn the output off.
Power limit (POWER LIMIT)
  Operation   Over power limit.
  Value (fixed)   Approx. 105% of rated output power
Front Panel PSW 30-72 80-27 160-14.4 250-9 800-2.88
Display, 4 digits
  Voltage accuracy 0.1% + mV 20 20 100 200 400
  Current accuracy 0.1% + mA 70 40 30 10 4
Programming and Measurement (Interface) PSW 30-72 80-27 160-14.4 250-9 800-2.88
Voltage programming accuracy 0.1% + mV 10 10 100 200 400
Current programming accuracy 0.1% + mA 60 30 15 10 4
Voltage programming resolution mV 1 2 3 5 14
Current programming resolution mA 2 2 2 1 1
Voltage measurement accuracy 0.1% + mV 10 10 100 200 400
Current measurement accuracy 0.1% + mA 60 30 15 10 4
Voltage measurement resolution mV 1 2 3 5 14
Current measurement resolution mA 2 2 2 1 1

PSW-1080W
Model PSW 30-108 80-40.5 160-21.6 250-13.5 800-4.32
Rated Output Voltage V 30 80 160 250 800
Rated Output Current A 108 40.5 21.6 13.5 4.32
Rated Output Power W 1080 1080 1080 1080 1080
Power Ratio -- 3 3 3.2 3.125 3.2
Constant Voltage Mode PSW 30-108 80-40.5 160-21.6 250-13.5 800-4.32
Line Regulation (*1) mV 18 43 83 128 403
Load Regulation (*2) mV 20 45 85 130 405
Ripple and Noise (*3)
  p-p (*4) mV 100 100 100 120 200
  r.m.s (*5) mV 14 14 20 15 30
Temperature coefficient ppm/°C 100ppm/°C of ra ted output voltage, after a 30 minute warm-up.
Remote sense compensation voltage V/wire 0.6 0.6 0.6 1 1
Rise Time (*6)
  Rated Load ms 50 50 100 100 150
  No Load ms 50 50 100 100 150
Fall Time (*7)
  Rated Load ms 50 50 100 150 300
  No Load ms 500 500 1000 1200 2000
Transient response time (*8) ms 1 1 2 2 2
Constant Current Mode PSW 30-108 80-40.5 160-21.6 250-13.5 800-4.32
Line regulation (*1) mA 113 45.5 26.6 18.5 9.32
Load regulation (*9) mA 113 45.5 26.6 18.5 9.32
Ripple and noise
  r.m.s (*5 ) mA 216 81 45 30 15
Temperature coefficient ppm/°C 200ppm/°C of rated output current, after a 30 minute warm-up .
Protection Function PSW 30-108 80-40.5 160-21.6 250-13.5 800-4.32
Over voltage protection (OVP)
  Setting range V 3-33 8-88 16-176 20-275 20-880
  Setting accuracy   ± (2% of rated output voltage)
Over current protection (OCP)
  Setting range A 5-118.8 4.05-44.55 2.16-23.76 1.35-14.85 0.432-4.752
  Setting accuracy   ± (2% of rated output current)
Over temperature protection (OTP)
  Operation   Turn the output off.
Low AC input protection (AC-FAIL)
  Operation   Turn the output off.
Power limit (POWER LIMIT)
  Operation   Over power limit.
  Value (fixed)   Approx. 105% of rated output power
Front Panel PSW 30-108 80-40.5 160-21.6 250-13.5 800-4.32
Display, 4 digits
  Voltage accuracy 0.1% + mV 20 20 100 200 400
  Current accuracy 0.1% + mA 100 50 30 20 6
Programming and Measurement (Interface) PSW 30-108 80-40.5 160-21.6 250-13.5 800-4.32
Voltage programming accuracy 0.1% + mV 10 10 100 200 400
Current programming accuracy 0.1% + mA 100 40 20 15 6
Voltage programming resolution mV 1 2 3 5 14
Current programming resolution mA 3 3 3 1 1
Voltage measurement accuracy 0.1% + mV 10 10 100 200 400
Current measurement accuracy 0.1% + mA 100 40 20 15 6
Voltage measurement resolution mV 1 2 3 5 14
Current measurement resolution mA 3 3 3 1 1

Common Specification
Input Characteristics PSW 30V 80V 160V 250V 800V
Nominal input rating   100Vac to 240Vac, 50Hz to 60Hz, single phase
Input voltage range   85Vac ~ 265Vac
Input voltage range   47Hz ~ 63Hz
Maximum input current
  100Vac A 360W: 5A, 720W: 10A, 1080W: 15A
  200Vac A 360W: 2.5A, 720W: 5A, 1080W: 7.5A
Inrush current A < 25A for 360W, < 50A for 720W, < 75A for 1080W
Maximum input power VA 360W: 500VA, 720W: 1000VA, 1080W: 1500VA
Power factor
  100Vac   0.99
  200Vac   0.97
Efficiency
  100Vac % 77 78 79 79 80
  200Vac % 79 80 81 81 82
Hold-up time   20ms or greater
Analog Programming and Monitoring PSW 30V 80V 160V 250V 800V
External voltage control output voltage   Accuracy and linearity: ±0.5% of rated output voltage.
External voltage control output current   Accuracy and linearity: ±1% of rated output current.
External resistor control output voltage   Accuracy and linearity: ±1.5% of rated output voltage.
External resistor control output current   Accuracy and linearity: ±1.5% of rated output current.
Output voltage monitor
  Accuracy % ±1 ±1 ±1 ±2 ±2
Output current monitor
  Accuracy % ±1 ±1 ±1 ±2 ±2
Shutdown control   Turns the output off with a LOW (0V to 0.5V) or short-circuit.
Output on/off control   Possible logic selections:
Turn the output on using a LOW (0V to 0.5V) or short-circuit, turn the output off using a HIGH (4.5V to 5V) or open-circuit.
Turn the output on using a HIGH (4.5V to 5V) or open-circuit, turn the output off using a LOW (0V to 0.5V) or short-circuit.
CV/CC/ALM/PWR ON/OUT ON indicator   Photocoupler open collector output; Maximum voltage 30V, maximum sink current 8mA.
Series and Parallel Capability PSW 30V 80V 160V 250V 800V
Parallel number Units 3 3 3 3 3
Series Number Units 2 2 2 None None
Front Panel
Indications   GREEN LED's:
CV, CC, VSR, ISR, DLY, RMT, 20, 40, 60, 80, 100, %W, W, V, A
RED LED's: ALM
Buttons   Function, OVP/OCP, Set, Test, Lock/Local, PWR DSPL, Output
Knobs   Voltage, Current
USB port   Type A USB connector
Interface Capabilities
USB   TypeA: Host, TypeB: Slave, Speed: 1.1/2.0, USB Class: CDC(Communications Device Class)
LAN   MAC Address, DNS IP Address, User Password, Gateway IP Address, Instrument IP Address, Subnet Mask
GPIB   Optional: GUG-001 (GPIB to USB Adapter)
Environmental Conditions
Operating temperature   0˚C to 50˚C
Storage temperature   -25˚C to 70˚C
Operating humidity   20% to 85% RH; No condensation
Storage humidity   90% RH or less; No condensation
Altitude   Maximum 2000m
General Specifications
Weight (main unit only) kg Approx. 3kg for 360W,
Approx. 5.3kg for 720W,
Approx. 7.5kg for 1080W
Dimensions (WxHxD) mm3  360W: 71×124×350mm,
720W: 142×124×350mm,
1080W: 214×124×350mm
Cooling   Forced air cooling by internal fan.
EMC   Complies with the European EMC directive 2004/108 /EC for Class A test and measurement products.
Safety   Complies with the European Low Voltage Directive 2006 /95/EC and carries the CE-marking.
Withstand voltage   Between input and chassis: No abnormalities at 1500 Vac for 1 minute.
Between input and output: No abnormalities at 3000 Vac for 1 minute.
Between output and chassis:
No abnormalities at 500 Vdc for 1 minute for 30V, 80V, 160V models.
No abnormalities at 1500 Vdc for 1 minute for 250V, 800V models.
Insulation resistance   Between input and chassis: 500 Vdc, 100MΩ or more
Between input and output: 500 Vdc, 100MΩ or more
Between output and chassis:
500 Vdc, 100MΩ or more for 30V, 80V, 160V and 250V models.
1000Vdc, 100MΩ or more for 800V models.

Notes

*1: At 85 ~ 132Vac or 170 ~ 265Vac, constant load.
*2: From No-load to Full-load, constant input voltage. Measured at the sensing point in Remote Sense.
*3: Measure with JEITA RC-9131B (1:1) probe
*4: Measurement frequency bandwidth is 10Hz to 20MHz.
*5: Measurement frequency bandwidth is 5Hz to 1MHz.
*6: From 10% to 90% of rated output voltage, with rated resistive load.
*7: From 90% to 10% of rated output voltage, with rated resistive load.
*8: Time for output voltage to recover within 0.1% + 10mV of its rated output for a load change from 50 to 100% of its rated output current.
*9: For load voltage change, equal to the unit voltage rating, constant input voltage.



Location

Ask about this product
