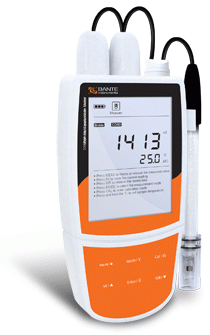

BANTE 904P Portable Conductivity/DO/°C/°F Meter

Bante 904P portable multi-parameter meter used for measuring

the Conductivity, TDS, Salinity, Resistivity and DO in water.

General Features:

Automatic Temperature Compensation(ATC)ensures highlyaccurate

    measurements over the entire range.

Calibration due reminder prompts you to calibrate the meter regularly.

Automatic endpoint function freezes the stable measured values for

    easy reading and recording data.

Manual temperature calibration provides accurate temperature value.

Help message as a operational guide to helps you understand how

    to use meter.

Setup menu lets user customizes calibration points, stability condition,

    resolution, temperature units, date and time to meet measurement

    requirements.

Reset function can resumes all settings to factory default values.

Expanded memory stores and recalls up to 500 readings.

Built-in real-time clock stamps stored data to meets GLP standards.

Stored data can be transferred into computer via USB communication

    interface.





Conductivity/TDS/Salinity Mode:

Up to 5 points calibration allows user to uses customized

    calibration solutions.

Adjustable TDSfactors, cell constants, temperature

    coefficients and normalization temperature.

Selectable linear or pure water compensation modes.

In salinity measurement modes, selectable practical salinity

    (PSU) or seawater measurement standard (ppt).



Dissolved Oxygen Mode:

1 or  2 points auto-calibration ( 100% in saturated air or air-saturated

    water, 0% in zero oxygen solution ).

Manual salinity and barometric pressure compensation.

Selectable readout in ppm, mg/L or percentage saturation.



Specifications:
     Model   Bante904P
   Conductivity Range   0~20mS/cm (Max.200mS/cm)
   Conductivity Accuracy   ±0.5% Full Scale
   Calibration Points   Up to 5 points
   Calibration Solutions   10uS/cm, 84uS/cm, 1413uS/cm, 12.88mS/cm, 111.8mS/cm
   TDS Range   0~10ppt (Max. 20ppt, Depending on factor setting)
   TDS Accuracy   ±1% Full Scale
   TDS Factor   0.1~1.0 (Default 0.5)
   Salinity Range   0~10ppt (Max.80ppt)
   Salinity Accuracy   ±1% Full Scale
   Salinity Measurement Modes   Practical Salinity (PSU) or Seawater Measurement Standard (ppt)
   Resistivity Range   0~100MΩ
   Resistivity Accuracy   ±1% Full Scale
   Temperature Coefficient   0.0~10.0% per °C
   Compensation Modes   Linear or Pure Water
   Cell Constant   K=0.1, 1, 10, Selectable
   Normalization Temperature   20°C or 25°C
   Temperature Compensation   0~100°C, 32~212°F, Automatic or Manual
   Dissolved Oxygen Range   0.00~20.00mg/L or ppm
   Resolution   0.01mg/L
   Dissolved Oxygen Accuracy   ±0.2mg/L (Calibration and measurement under the conditions of same temperature)
   % Saturation of Oxygen   0.0~200.0%
   Accuracy   ±2.0%
   Salinity Correction   0~50g/L
   Pressure Correction   60.0~112.5kPa, 450~850mmHg
   Temperature Compensation   0~50°C, 32~122°F, Automatic
   Temperature Range   0~105°C, 32~221°F
   Temperature Accuracy   ±0.5°C, ±0.9°F
   Temperature Calibration   Manual
   Auto-Off   Manual or Automatic (10, 20, 30 minutes after last key pressed, Selectable)
   Hold Function   Manual or Automatic
   Stability Conditions   Low or High, Selectable
   Calibration due reminder   0 to 30 days
   Reset Function   Yes
   Memory   500 data sets with Date/Time stamping
   Output   USB Communication Interface
   Connector   BNC and 6-pin connector
   Power Requirements   3×1.5V "AA" Batteries
   Battery Life   Approximately 150 hours
   Dimensions   170(L)×85(W)×30(H)mm
   Weight   300 grams

  Order Code and Accessories:
     Order Code   Accessories


   Bante904P-UK



K10 Conductivity Electrode (Made in UK)

DO100 DO Probe (Made in US)

TP-10K Temperature Probe

Conductivity Calibration Solutions (146uS/cm, 1413uS/cm, 12.88mS/cm)

Carrying Case and “AA” Batteries



   Bante904P-CN



CON-1 Conductivity Electrode

DO100 DO Probe (Made in US)

TP-10K Temperature Probe

Conductivity Calibration Solutions (146uS/cm, 1413uS/cm, 12.88mS/cm)

Carrying Case and “AA” Batteries
