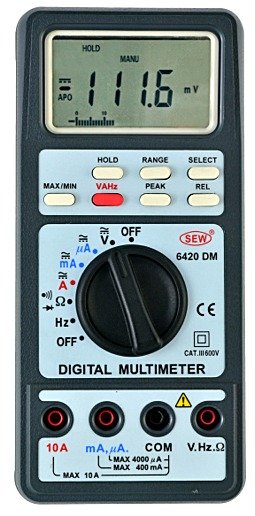

● 4000 counts LCD with a maximum display of 3999. ● Angled display design helps the user to identify the reading of value easier. ● Auto ranging designed. ● Bar graph LCD display. ● Range change function. ● Relative/Maximum/Minimum modes. ● Peak hold mode. ● VAHz mode measures frequency in voltage or current mode. ● 40M Hz frequency counter. ● Auto Power off. ● Continuity check. ● Data hold function. ● Low battery indication. ● Over range indication. ● Fuse protection. ● Special hook design used to hang the meter for ease of use.
SPECIFICATIONS
DC Voltage
Ranges
Resolution
Accuracy
Input protection
400.0mV
100μV
±(0.5%rdg+3dgt)
1000V DC
4.000V
1mV
40.00V
10mV
400.0V
100mV
1000V
1V
․Input impedance : 10MΩ
AC Voltage
Ranges
Resolution
Accuracy
Input protection
400.0mV
100μV
±(1%rdg+5dgt)
800V AC
4.000mV
1mV
40.00mV
10mV
400.0mV
100mV
750V
1V
․Input impedance : 10MΩ
DC Current
Ranges
Resolution
Accuracy
Input protection
400.0μA
0.1μA
±(1%rdg+5dgt)
500mA
4000μA
1μA
40.00mA
0.01mA
400.0mA
0.1mA
10A
10mA
±(2%rdg+2dgt)
12.5A
․Overload Protection 0.5A/250V fast blow fuse for 400mA 12.5A/500V fast blow fuse for 10A
AC Current
Ranges
Resolution
Accuracy
Input protection
400.0μA
0.1μA
±(1%rdg+5dgt)
500mA
4000μA
1μA
40.00mA
0.01mA
400.0mA
0.1mA
10A
10mA
±(2%rdg+3dgt)
12.5A
․Overload Protection 0.5A/250V fast blow fuse for 400mA 12.5A/500V fast blow fuse for 10A
