TES-Taiwan

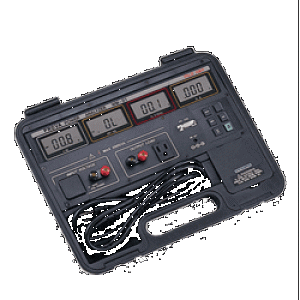

WM-01/02 Power Analyzer Datalogger

Category: Power Analyzer
WATT (Auto Range, AC & DC)
Range
Resolution
Accuracy
Input
200W
0.1W
0.9% of rdg ±4 dgts
0-300V,0-20A,0-400Hz,PF=0-1

CURRENT (True RMS, AC & DC)
Range
Resolution
Accuracy
Frequency
Overload Protection
20A
0.01
0.5% of rdg ±3 dgts
0-5KHz
20A, fused
VOLTAGE (True RMS, Auto Range, AC & DC)
Range
Resolution
Accuracy
Frequency
Overload Protection
750
0.1V
0.5% of rdg ±3 dgts
0-5KHz
1000VDC/750VAC
FREQUENCY (Sensitivity＞5V)
Range
Resolution
Accuracy
2K/20K/200K/2M/20MHz
1Hz-10KHz
0.5% of rdg +/- 2 dgts
PF (Direct Calculation from W, V, A)
PF= Watt/(V* A)
General Specification
Numerical Display

3 1/2 digits LCD
Over Range Indication OL on LCD
Sampling Rate 2.5 times/sec.
Power Source 1.5V AA batteries
Power Consumption 22mA approx.
Operating Temperature 0~40℃
Operating Humidity Less than 80%
Dimension 352mm(L)*300mm(W)*100mm(H)
13.9"(L)*11.8"(W)*3.9"(H)
Weight 1.637 Kg (approx.) 3.6 lbs (approx.)
