Advantages

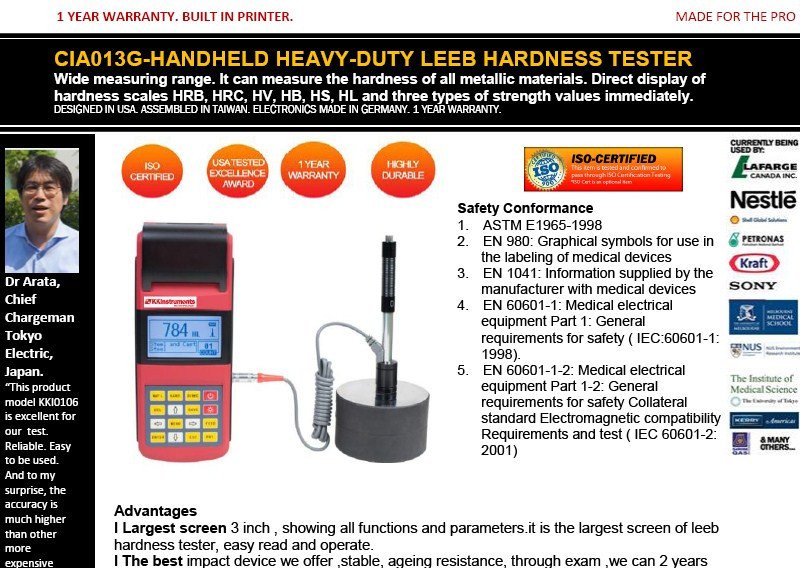

l Largest screen 3 inch , showing all functions and parameters.it is the largest screen of leeb hardness tester, easy read and operate.
l The best impact device we offer ,stable, ageing resistance, through exam ,we can 2 years long time using ,but others can not.
l Test at any angle, even upside down.
l Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.
l Seven impact devices are available for special application. Automatically identify the type of impact devices.
l Large capacity memory could store 600 groups (Relative to average times32~1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.
l Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.
l Battery information indicates the rest capacity of the battery and the charge status.
l User calibration function.
l USB port with the PC humanity multi-functions data proceeding software.
l Original imported high speed thermal printer support the immediate printing function. It can save data permanently.
l NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).
l Auto power off to save energy.
l Excellent after-sale service system for high quality products---3 years' guarantee and all life maintenance. Easy to buy and comfortable to use.
Main Application
l Die cavity of molds
l Bearings and other parts
l Failure analysis of pressure vessel, steam generator and other equipment
l Heavy work piece
l The installed machinery and permanently assembled parts
l Testing surface of a small hollow space
l Material identification in the warehouse of metallic materials
l Rapid testing in large range and multi-measuring areas for large-scale work piece
Technical Specifications
l Measuring range:HLD(170~960)HLD
l Measuring direction:360°
l Hardness Scale:HL、HB、HRB、HRC、HRA、HV、HS
l Display:3 inch screen ,one of the biggest in China.
l Data memory: 600 groups max.(relative to impact times 32~1)
l Printing paper: width is (57.5±0.5)mm, diameter is 30mm
l Battery pack: 6V NI-MH
l Battery charger: 9V/500mA
l Continuous working period:about 150 hours(With backlight off, no printing)
l Communication interface:USB1.1
l Outline dimensions:210mm×85mm×35mm
Configuration
|
No. |
Item |
Quantity |
Remarks |
Standard Configuration |
1 |
Main Unit |
1 |
|
2 |
D type impact device |
1 |
With cable |
|
3 |
Standard test block |
1 |
|
|
4 |
Cleaning brush (I) |
1 |
|
|
5 |
Small support ring |
1 |
|
|
6 |
Battery Charger |
1 |
9V 500mA |
|
7 |
Paper for printing |
1 |
|
|
8 |
Manual |
1 |
|
|
9 |
Instrument case |
1 |
|
|
Optional Configuration |
11 |
Cleaning brush (II) |
1 |
For use with G type impact device |
12 |
Other type of impact devices and support rings |
|
Refer to Table 3 and Table 4 in the appendix. |
|
13 |
DataPro software |
1 |
|
|
14 |
Communication cable |
1 |
|
|
15 |
|
|
|
|
16 |
|
|
|
