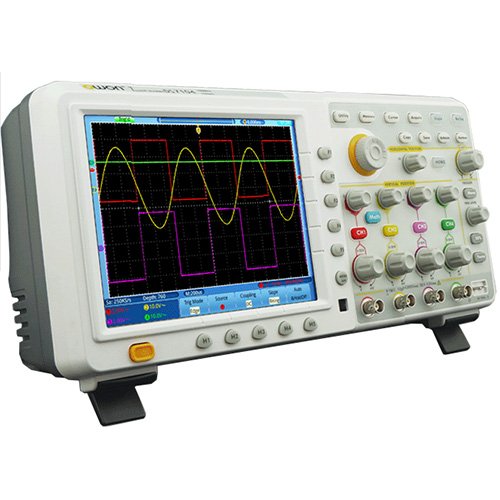

Specifications |
Bandwidth |
100MHz |
Channel |
4 |
Sample Rate |
2GS/s |
Waveform Capture Rate |
50,000 wfms/s |
Display |
8" touch screen color LCD |
Input Coupling |
DC, AC, and GND |
Input Impedance |
1MΩ ± 2%, in parallel with 10pF ± 5pF ; 50Ω ± 1% |
Probe Attenuation Factor |
1X, 10X, 100X, 1000X |
Max Input Voltage |
1MΩ input impedance : 400V (PK - PK) (DC + AC, PK - PK) 50Ω input impedance : 5V (PK - PK) (DC + AC, PK - PK) |
Channel Isolation |
50Hz:100:1 10MHz:40:1 |
Interpolation |
sin(x)/x |
Record Length |
7.6M |
Horizontal Scale (s/div) |
1ns/div - 100s/div, step by 1 - 2 - 5 |
Interval (ΔT) Accuracy (full bandwidth) |
Single : ±(1 interval time + 100ppm x reading + 0.6ns) Average>16 : ±(1 interval time + 100ppm x reading + 0.4ns) |
Vertical Resolution (A/D) |
8 bits resolution (4 channels simultaneously) |
Vertical Sensitivity |
2mV/div - 10V/div (at input) |
Analog Bandwidth |
100 MHz |
LF Respond (AC, -3dB) |
≥5Hz (at input, AC coupling, -3dB) |
Rise Time |
≤3.5ns |
DC Accuracy |
±3% |
Trigger Type |
Edge, Pulse, Video, Slope |
Trigger Mode |
Auto, Normal, Single |
Trigger Level Range |
±6 div from the screen center |
Trigger level Accuracy (typical) |
±0.3 div |
Line / Field Frequency (video) |
NTSC, PAL, and SECAM standard |
Automatic Measurement |
Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty |
Waveform Math |
+, -, ×, ÷, invert, FFT |
Waveform Storage |
4 reference waveforms |
Lissajous Figure |
Bandwidth |
full Bandwidth |
Phase Difference |
±3 degrees |
Cursor Measurement |
ΔV, and Δ T between cursors |
Communication Port |
USB host, USB device, VGA, LAN |
Power Supply |
100 - 240 V AC, 50/60Hz, CAT II |
Dimension (WxHxD) |
14.9 x 7.08 x 4.5 Inches (380 x 180 x 115 mm) |
Weight |
3.3 lbs (1.5 kg) |
|
