Stroboscope

  • Filter
Category: Stroboscope

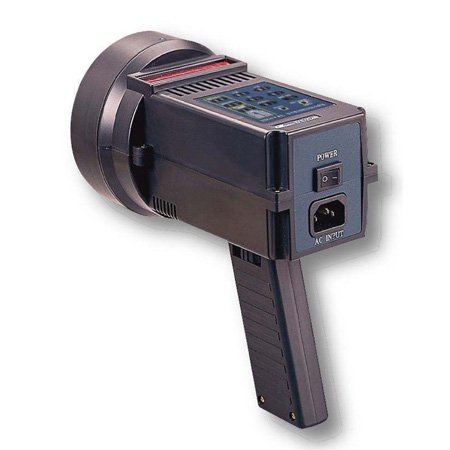

DESCRIPTION The model DT-2239A is a microprocessor circuit design, high accuracy, digital readout, light duty STROBOSCOPE/TACHOMETER that is ideal for inspecting and measuring the speed of moving gears, fans, centrifuges, pumps, motors and other equipment used in general industrial maintenance, production, quality control, laboratories and as well as for schools and colleges for demonstrating strobe action.

Category: Stroboscope

FEATURES * Push keyboard setting. * External trigger input. * RS232 computer interface output. * Flash rate : 5 to 10,500 RPM/FPM. 0.083 to 175 Hz * Display 14 mm LED, 6 digits. * High resolution. * Main function : Fine adjust, Coarse adjust, Multiply by 2, Divide by 2, Fast finder, Memory recall. * Memorize 10 sets of measuring data. * Crystal time base and microprocessor circuit, not necessary take any calibration procedures. * Power supply : AC 110V/220V/230V, 50/60 Hz. * Application for inspecting and measuring the speed of moving gears, fans, centrifuges, pumps, motors, general industrial maintenance, production, quality control, laboratories, schools and colleges...

Category: Stroboscope

FEATURES * Stroboscope use high intensity XENON tube. * LCD display with back light. * Stroboscope range : 100 to 15,000 RPM. * External trigger for stroboscope. * DCV power supply via external AC/DC adapter, 90-260 ACV/DC adapter is the standard accessory. * Build in battery compartment, power can use  the DC 1.2 V Ni-MH recharge battery ( UM-1, D size ) X 4 PCs, the recharge batteries and the battery charger are the optional accessories.

Category: Stroboscope

Features : * Stroboscope use high intensity XENON tube. * LCD display with back light. * Stroboscope range : 100 to 10,000 RPM. * External trigger for stroboscope. * Photo tachometer range : 10 to 99,999 RPM. * Photo tachometer use the laser light beam. * DCV power supply via external AC/DC adapter included )

Category: Stroboscope

Features : * Stroboscope use high intensity LED array. * LCD display with back light. * Stroboscope range : 100 to 99,999 RPM. * External trigger for stroboscope. * Photo tach. range : 10 to 99,999 RPM. * Photo tachometer use the laser light beam. * Power supply : 1.5 V ( UM-1 ) x 4 PCs * DCV power supply via external AC/DC adapter is available, AC/DC adapter is optional.
