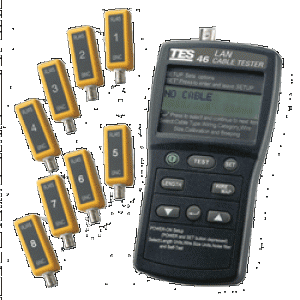

TES-46 CAT-5 Lan Cable Tester

Category: Lan Cable Tester
Display Two lines characters LCD display (16 characters each)
Connector RJ45 and BNC
Category CAT5
Faults Status Opens, Shorts, Reversed, Crossed, Split Pair.
Test Type TEST provides a pass / fail report on the cable under test. In
case a failure has been detected, the display offers additional
diagnostic information.
LENGTH provides the length of each pair (in case a twisted pair
cable is being tested).
WIRE MAP provides the detail wiring for the cable.
Cable Length Range 2 to 999 ft or 1.0 to 350 m.
Resolution 1 ft or 0.5 m.
Accuracy 5% + 3 ft or 5% + 1 m
Power 6 pcs 1.5V size AAA alkaline battery.
Input Protection The inputs withstand telephone ringing and loop voltages.
Size / Weight 152 mm x 72 mm x 35 mm / Approx. 360 g
Environment Conditions Operating : 0 ℃ to +50 ℃ , Storage : -20 ℃ to + 60 ℃
Accessories Instruction manual , Carry case , One UTP Category 5 patch
cable, One RJ45F - RJ45F female coupler, Cable identifier #1 for the verification of the wire map.
